RUUD

Classic Series Digital Heat Pump 117K 208/230V

Product #:RUD-15-3362

Mfg. Part #:013362

  • This product is obsolete.
  • The superceded product was not found.

Ruud D6350 Classic Specialty Series Pool Heat Pump; 117K BTU, 208/230V, Digital Control, Titanium Tubing

RUUD

Classic Series Digital Heat Pump 117K 208/230V

Product #:RUD-15-3362

Mfg. Part #:013362

Description

Same rugged steel construction used by all the major air conditioner manufacturers. Fully louvered steel jacket protects the evaporation coil from storm debris, hail and harsh weather. Not to mention the winning goal in a back yard soccer match. A plastic cabinet is no match for the all steel cabinet. The spiral titanium tube heat exchanger provides a corrosion-free waterway that can withstand the abuses of harsh pool chemistry. The spiral tube helps reduce deposit build-up and increases efficiency by performing a “scoop-and-lift” action.

Feature Bullets

  • Exclusive DuraSteel™ Powder-Coated Cabinet
  • 3 Blade Swept Wing Fan
  • Extremely Tough Composite Base
  • Scroll Compressor
  • Spiral Titanium Tube
  • Internal Automatic Water Bypass
  • Plumbing Connections Off-set 2” PVC union connections
  • Branch Availability

    content loaded

    Specifications

    • BrandRUUD
    • ApplicationPool
    • Shipping Dimensions47 x 37 x 36 inch
    • BTU Output117000 British thermal unit
    • Cabinet Depth34.5 inch
    • Cabinet Height42.5 inch
    • Cabinet Width34.5 inch
    • Commercial, Residential, or ProfessionalResidential
    • Compressor TypeScroll
    • Control TypeDigital
    • Each Product Weight309 pound
    • Electrical Input5.3 kilowatts
    • Flow Rate Max60 gal/min
    • Flow Rate Min15 gal/min
    • Frequency Rating (Hz)60
    • Heat Exchanger MaterialTitanium
    • Housing MaterialStainless Steel
    • Master Carton Quantity1
    • Min Circuit Ampacity42 amperage
    • Pallet Quantity1
    • PhaseSingle
    • Refrigerant ModelR-410A
    • Standards ApprovalsAHRI Certified
    • Voltage208V, 230V
    • UPC Code840891027751

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

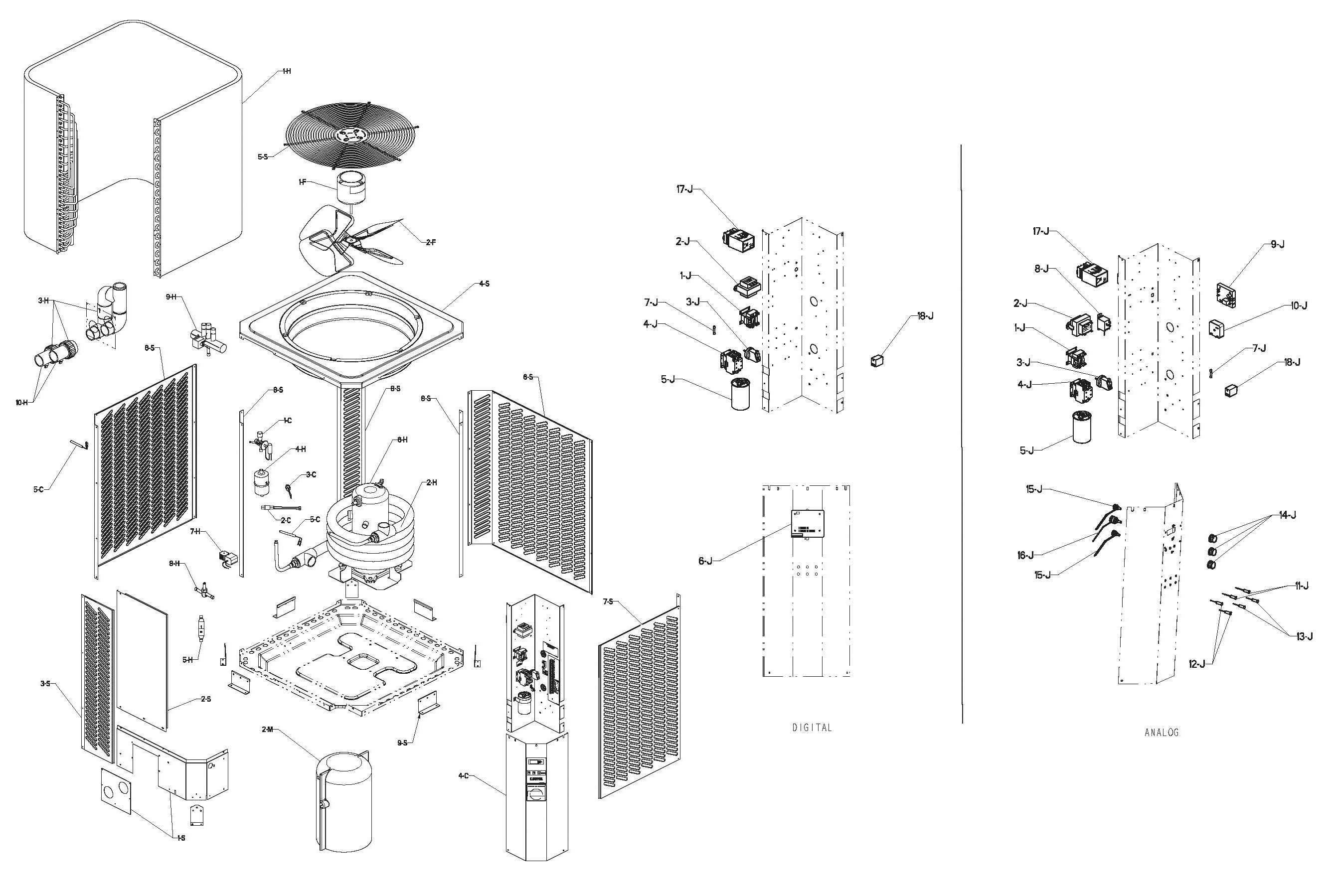

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1-C
    1-C
    H000076
    RAY-151-8814
    Product #: RAY-151-8814
    Mfg #: H000076
    1-C
    1-C
    H000173
    RAY-151-8813
    Product #: RAY-151-8813
    Mfg #: H000173
    2-C
    2-C
    H000078
    RAY-151-8161
    Product #: RAY-151-8161
    Mfg #: H000078
    3-C
    3-C
    H000079
    RAY-151-8156
    Product #: RAY-151-8156
    Mfg #: H000079
    4-C
    4-C
    H000097
    RAY-151-8212
    Product #: RAY-151-8212
    Mfg #: H000097
    4-C
    4-C
    H000222
    RAY-151-8214
    Product #: RAY-151-8214
    Mfg #: H000222
    4-C
    4-C
    H000098
    RAY-151-8204
    Product #: RAY-151-8204
    Mfg #: H000098
    4-C
    4-C
    H000225
    RAY-151-8205
    Product #: RAY-151-8205
    Mfg #: H000225
    5-C
    5-C
    H000002
    RAY-151-3630
    Product #: RAY-151-3630
    Mfg #: H000002
    1-H
    1-H
    H000018
    RAY-151-8094
    H000018 40 SINGLEROW R410A EVAPORATOR COIL
    Product #: RAY-151-8094
    Mfg #: H000018
    2-H
    2-H
    H000022
    RAY-151-8366
    Product #: RAY-151-8366
    Mfg #: H000022
    3-H
    3-H
    H000042
    RAY-151-8056
    Product #: RAY-151-8056
    Mfg #: H000042
    4-H
    4-H
    H000011
    RAY-151-8268
    Product #: RAY-151-8268
    Mfg #: H000011
    6-H
    6-H
    H000012
    RAY-151-8115
    Product #: RAY-151-8115
    Mfg #: H000012
    6-H
    6-H
    H000171
    RAY-151-8116
    Product #: RAY-151-8116
    Mfg #: H000171
