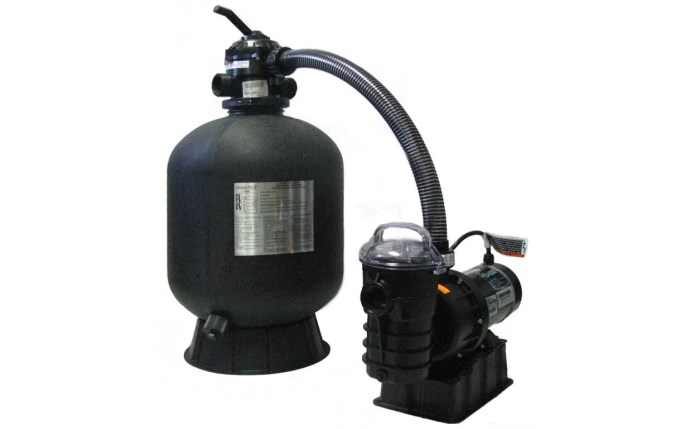

19" Cristal-Flo™ II Filter System with 1 1/2 HP Standard Cord

Product #:STA-05-0064

Mfg. Part #:SRCF2019DO1160

  • This product is obsolete.
  • The superceded product was not found.

Pentair Cristal-Flo™ II SRCF2019DO1160 Above Ground Sand Filter System with 3' Standard Pump Cord and 6' Hose Kit; 19" Dia., 1.8 SqFt, 40 gpm, 1-1 per 2 HP Pump

Pentair

19" Cristal-Flo™ II Filter System with 1 1/2 HP Standard Cord

Product #:STA-05-0064

Mfg. Part #:SRCF2019DO1160

Description

The Pentair Cristal-Flo II Above Ground Sand Filter System is an easy-maintenance sand filter system with the rugged, large capacity Dynamo Series pump. Blow-molded polyethylene filter tanks are weather resistant. Low maintenance and simple installation make this system the choice of many applications.

Documents

Feature Bullets

  • Less maintenance - enjoy greater time between cleanings. The tank's sophisticated design distributes water evenly to maximize efficiency throughout filtration media
  • No mess, no fuss - the filter tank requires minimum maintenance. A simple turn of the multi-port valve lever accomplishes routine backwashing
  • Fast, easy set-up - the complete system includes a one-piece sand filter and a performance-matched pump that's ready for assembly on a compact, heavy-duty platform
  • Unionized pump and filter connections

    • Branch Availability

    content loaded

    Specifications

    • BrandPentair
    • Each Product Weight63 pound
    • Shipping Dimensions31 x 28 x 28 inch
    • Filtration Area1.8 square feet
    • Hose Kit6 ft
    • Master Carton Quantity1
    • Minimum Sell Quantity1
    • Pallet Quantity1
    • Sand Required150 pound
    • Tank Diameter19 inch
    • UPC Code788379805388

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

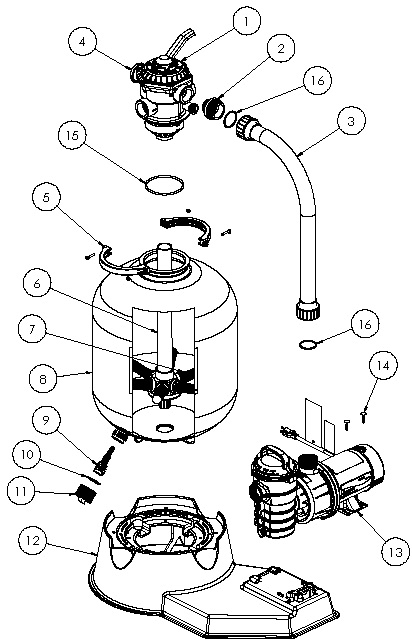

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    262506
    PAC-06-248
    TA Tagelus 1-1/2" D Backwash Multiport Valve for Top Mount Sand Filter
    Product #: PAC-06-248
    Mfg #: 262506
    2
    2
    354588Z
    PAC-101-1475
    NPT to Buttress Adaptor
    Product #: PAC-101-1475
    Mfg #: 354588Z
    Notes:
    NPT to Buttress
    3
    3
    155726
    PAC-101-5712
    Pump to Filter Connection Assembly 16"
    Product #: PAC-101-5712
    Mfg #: 155726
    3
    3
    155727
    PAC-101-5713
    Pump to Filter Connection Assembly 19"
    Product #: PAC-101-5713
    Mfg #: 155727
    3
    3
    155728
    PAC-101-5714
    Pump to Filter Connection Assembly 22"
    Product #: PAC-101-5714
    Mfg #: 155728
    3
    3
    155709Z
    PAC-101-5709
    Pump to Filter Connection Assembly SD20
    Product #: PAC-101-5709
    Mfg #: 155709Z
    Notes:
    Dynamo/ OptiFlo to 16 in. Tank
    3
    3
    155710
    PAC-101-5710
    Pump to Filter Connection Assembly SD40
    Product #: PAC-101-5710
    Mfg #: 155710
    Notes:
    Dynamo/ OptiFlo to 19 in. Tank
    3
    3
    155711Z
    PAC-101-5711
    Pump to Filter Connection Assembly SD60
    Product #: PAC-101-5711
    Mfg #: 155711Z
    Notes:
    Dynamo/ OptiFlo to 22 in. Tank
    4
    4
    190059Z
    PAC-051-0317
    0-60 PSI Rear Mount Pressure Gauge with Indicator
    Product #: PAC-051-0317
    Mfg #: 190059Z
    4
    4
    190059
    PAC-051-111
    0-60 PSI Rear Mount Pressure Gauge with Indicator
    Product #: PAC-051-111
    Mfg #: 190059
    4
    4
    80960BUCF
    SPG-06-2002
    2" Plastic Pressure Gauge 0.25" 0-60 PSI with Indicator Bezel Back Mount
    Product #: SPG-06-2002
    Mfg #: 80960BUCF
    4
    4
    ECX2712B1
    HAY-051-2712
    Pressure Gauge
    Product #: HAY-051-2712
    Mfg #: ECX2712B1
    5
    5
    152165
    PAC-051-1644
    1-1/5" Six-Way HiFlow Valve Clamp with Screw and Nut
    Product #: PAC-051-1644
    Mfg #: 152165
    6
    6
    152229
    PAC-051-9303
    SD35 Standpipe Assembly
    Product #: PAC-051-9303
    Mfg #: 152229
    Notes:
    16 in. Tank
    6
    6
    152228
    PAC-051-9302
    SD40 Standpipe Assembly
    Product #: PAC-051-9302
    Mfg #: 152228
    Notes:
    19 in. Tank
