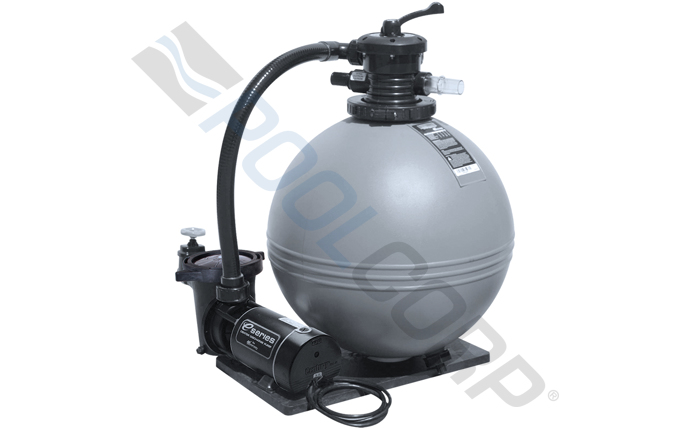

Waterway™ TWM 520-1910 19" Sand Filter System 1HP 1 Speed with 3' NEMA Cord
EA
Description
The economical solution for filtering with a sand filter on an above ground pool. Designed to handle virtually all sizes and conditions, the Waterway TWM Sand Filter systems will provide years of dependable filtration.
Branch Availability
content loaded
Specifications
- BrandWaterway
- ApplicationAbove Ground, Pool
- Design Flow Rate42 gal/min
- Each Product Weight56 pound
- Filtration Area2 square feet
- Horsepower1 horse power
- IncludesFilter, Pump, Hoses and Fittings in one box
- Master Carton Quantity1
- Pallet Quantity1
- Filter Control Valve7-Position, Multi-Port Valve
- Motor Speed1-Speed
- UPC Code806105097880
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

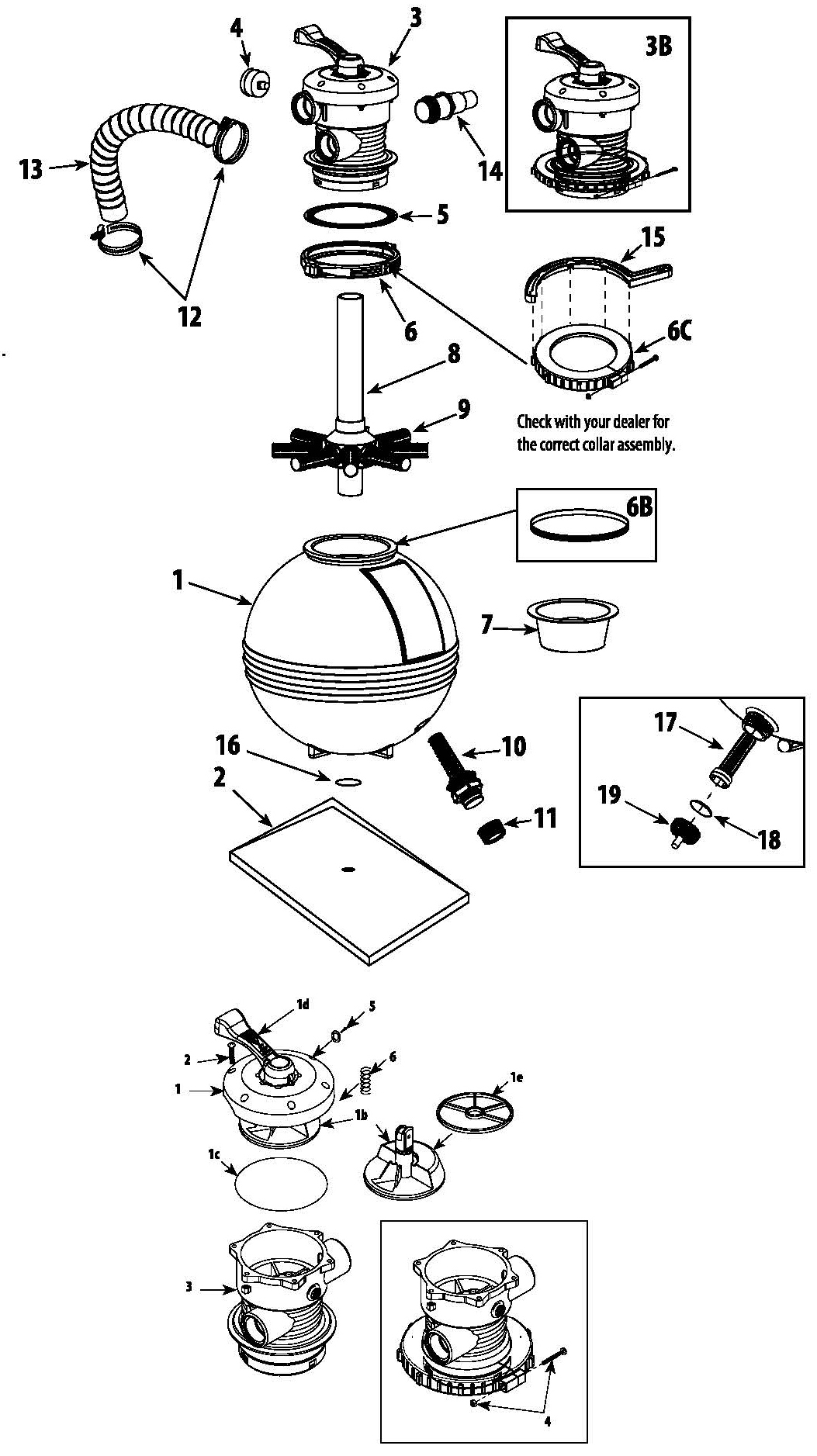

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
505-0161B
16 Sand Filter Body with Threaded Sleeve Assembly
Product #:
Mfg #: 505-0161B
1
1
505-0191B
19 Sand Filter Body with Threaded Sleeve Assembly
Product #:
Mfg #: 505-0191B
1
1
505-0221B
22 Sand Filter Body with Threaded Sleeve Assembly
Product #:
Mfg #: 505-0221B
1
1
505-0261B
26 Sand Filter Body with Threaded Sleeve Assembly
Product #:
Mfg #: 505-0261B
2
2
672-1000B
Equipment Base - 1 x 15 1/4 x 26 1/4
Product #:
Mfg #: 672-1000B
3
3
WVS002B
1 1/2 Multi-Port Valve Assembly - Clamp Style (2001 and Earlier)
Product #:
Mfg #: WVS002B
3B
3B
WVS003B
1 1/2 Multi-Port Valve Assembly with Split-Nut (2002 to Present)
Product #:
Mfg #: WVS003B
4
4
830-3000B
Pressure Gauge
Product #:
Mfg #: 830-3000B
5
5
711-1920B
Collar Gasket (use with Clamp Style)
Product #:
Mfg #: 711-1920B
6
6
505-2070B
Collar Assembly - Old Style (2001 and Earlier)
Product #:
Mfg #: 505-2070B
6B
6B
505-3000B
Threaded Sleeve Assembly
Product #:
Mfg #: 505-3000B
6C
6C
505-3010B
Multi-Port Valve Split-Nut Assembly
Product #:
Mfg #: 505-3010B
7
7
502-2011B
Sand Fill Guide
Product #:
Mfg #: 502-2011B
8
8
505-2040B
Lateral & Manifold Assembly - 16 Filter
Product #:
Mfg #: 505-2040B
8
8
505-2050B
Lateral & Manifold Assembly - 19 Filter
Product #:
Mfg #: 505-2050B
