#51 Natural Gas Digital Polymer Heater 300K BTU

Product #:RHM-15-4968

Mfg. Part #:014968

  • This product is obsolete.
  • The superceded product was not found.

Rheem P-M336A Digital Polymer Pool/Spa Heater; 300K BTU, Natural Gas, #51 Burner, Cupro-Nickel Tubing

Rheem

#51 Natural Gas Digital Polymer Heater 300K BTU

Product #:RHM-15-4968

Mfg. Part #:014968

Description

The Rheem natural gas heater is designed for the highest level of performance, and made quality-made parts at every level. The heater features protective measures against all types of damaging factors including weather, environmental factors and temperature. The stainless steel and aluminum protect heat-sensitive areas, while cutting edge technology ensures that water is heated to your specific preferences.

Documents

Feature Bullets

  • PolyTuf Textured Powder Coating - The Rheem gas heater has a polyester-coated, non-corrosive cabinet that is more durable than solvent-borne and waterborne-coated metal cabinets. Every piece of sheet metal goes through a 7-stage wash system, making certain the powder paint has a perfect bond
  • Cupro-Nickel Finned-Tube Heat Exchanger - Single bank, straight through design delivers lowest pressure drop. Integral fins have ten times the heat transfer surface of plain tubes. Cupro-nickel tubes provide superior chemical resistance over copper for tough commercial installations
  • Stainless Steel Tube Sheet - Stainless steel tube sheets are used on all Rheem gas heaters. This allows for a completely nonferrous waterway, leaving your pool truly rust-free
  • CPVC 2 Inch Water Connections - Standard with every Rheem is a set of 2 Inch slip-fit CPVC water connections to make your installation secure and effortless
  • High Flow Rates - The Rheem gas heater comes with an automatic bypass built into the header. You'll find that the heater is capable of handling water flow at a rate up to 125 gpm
  • Fuel-Efficient - Energy-smart Rheem heaters consistently achieve the highest efficiency ratings. They meet or exceed all federal and state standards
  • Microprocessor-Controlled Thermostat - The Rheem Digital gas heater features a microprocessor-based control center. This control allows you to set your pool or spa temperature precisely at your favorite setting just by pressing the up or down temperature
  • Self-Diagnostic - On-board diagnostic controls let the user and the service professional know what is going on with the heater at all times. In the event that you would ever have a problem with the heater, the digital display will indicate the source
  • Remote Compatible - Compatible with most major pool control and remote systems on the market today. Any two-wire or three-wire remote can connect to the heater and be integrated into the pool control system of your choice

    • Branch Availability

    content loaded

    Specifications

    • BrandRheem
    • ApplicationPool, Spa
    • Shipping Dimensions28 x 26 x 38 inch
    • BTU Input332500 British thermal unit
    • Burner Orifice Size#51
    • Cabinet Depth28 inch
    • Cabinet Height38 inch
    • Cabinet Width26 inch
    • Commercial, Residential, or ProfessionalResidential
    • Control TypeDigital Electronic
    • Each Product Weight230 pound
    • Elevation Max6000 foot
    • Elevation Min2000 foot
    • Flow Rate Max125 gal/min
    • Flow Rate Min125 gal/min
    • Flue Diameter8 inch
    • Frequency Rating (Hz)60
    • Fuel TypeNatural Gas
    • Gas Connection0.75 inch
    • Gas Connection FITNPT
    • Green or Energy Efficient ProductTrue
    • Header MaterialPolymer
    • High Altitude ModelTrue
    • Indoor Drafthood63 inch
    • Master Carton Quantity1
    • Minimum J10.625 inch
    • Minimum Sell Quantity1
    • Pallet Quantity1
    • PhaseSingle
    • Stackless Outdoor Top40 inch
    • Standards ApprovalsASME Certified
    • Tubing MaterialCupro Nickel
    • Voltage115V, 230V
    • UPC Code840891032434

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

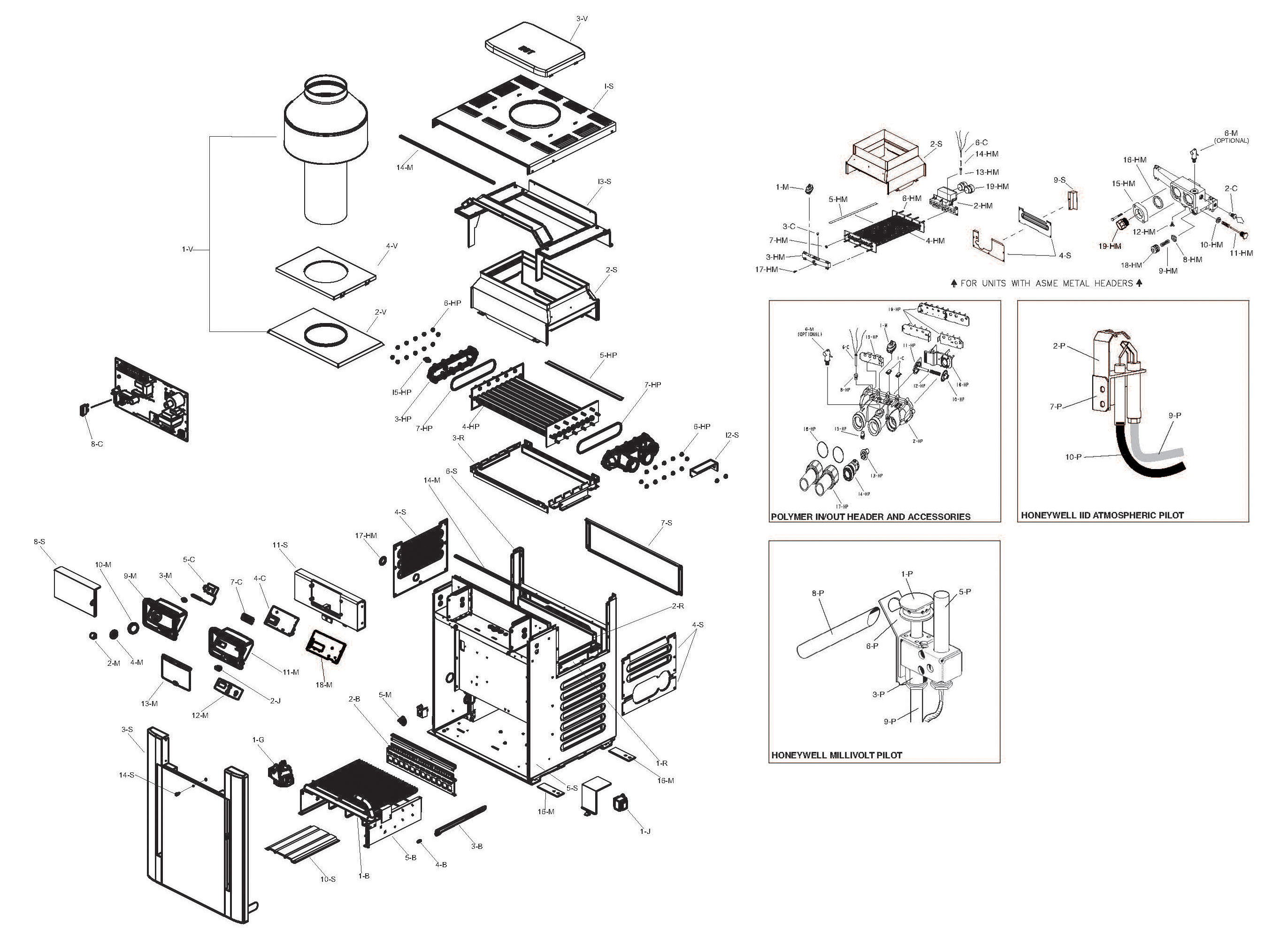

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1-B
    1-B
    010393F
    RAY-151-8777
    Burner Tray without Burner For 336A Pool & Spa Heater
    Product #: RAY-151-8777
    Mfg #: 010393F
    1-B
    1-B
    010397F
    RAY-151-8778
    Burner Tray without Burner For 336A Pool & Spa Heater
    Product #: RAY-151-8778
    Mfg #: 010397F
    1-B
    1-B
    010401F
    RAY-151-8780
    336A STG Burner Tray with Natural Gas Valve
    Product #: RAY-151-8780
    Mfg #: 010401F
    1-B
    1-B
    010409F
    RAY-151-8779
    336A IID Burner Tray with Natural Gas Valve
    Product #: RAY-151-8779
    Mfg #: 010409F
    1-B
    1-B
    010413F
    RAY-151-8781
    336A IID Burner Tray with Liquid Propane Valve
    Product #: RAY-151-8781
    Mfg #: 010413F
    1-B
    1-B
    010405F
    RAY-151-8782
    336A STG Burner Tray with Liquid Propane Valve
    Product #: RAY-151-8782
    Mfg #: 010405F
    2-B
    2-B
    010417F
    RAY-151-8039
    Burner Spacer Hold Down Kit For 336A Pool & Spa Heater
    Product #: RAY-151-8039
    Mfg #: 010417F
    3-B
    3-B
    100-10000414
    RAY-151-1123
    SRV Replacement Burner Kit
    Product #: RAY-151-1123
    Mfg #: 100-10000414
    4-B
    4-B
    350079F
    RAY-151-1213
    Natural Gas Burner Orifice For Model 185B (12), 265B (17) Pool Heater, #50
    Product #: RAY-151-1213
    Mfg #: 350079F
    4-B
    4-B
    350080F
    RAY-151-0080
    350080F #51 NG BURNER ORIFICE
    Product #: RAY-151-0080
    Mfg #: 350080F
    4-B
    4-B
    350081F
    RAY-151-0081
    Natural Gas Burner Orifice For Model 206A (13), 266A (18) Pool Heater, #52
    Product #: RAY-151-0081
    Mfg #: 350081F
    4-B
    4-B
    350347F
    RAY-151-8598
    Natural Gas Pilot Burner Orifice For 206A/266A/336A/406A Pool & Spa Heater #53
    Product #: RAY-151-8598
    Mfg #: 350347F
    4-B
    4-B
    350083F
    RAY-151-1215
    Natural Gas Burner Orifice, #57
    Product #: RAY-151-1215
    Mfg #: 350083F
    4-B
    4-B
    350087F
    Propane Gas Burner Orifice #58
    Product #:
    Mfg #: 350087F
    4-B
    4-B
    350350F
    RAY-151-1365
    Propane Gas Burner Orifice
    Product #: RAY-151-1365
    Mfg #: 350350F
