Brands
Hayward

90 SqFt Cartridge Filter

Product #:HAY-05-161

Mfg. Part #:C9002

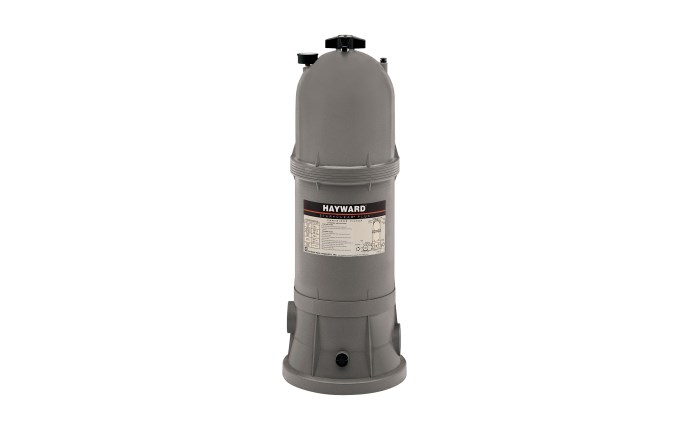

Hayward C9002 Star-Clear™ Plus 90 SqFt Cartridge Filter 50 psi 90 gpm 2" FIP

Hayward

90 SqFt Cartridge Filter

Product #:HAY-05-161

Mfg. Part #:C9002

Description

Star-Clear Plus single element cartridge filters offer excellent quality, value and convenience.

Documents

Feature Bullets

  • No backwashing requirement saves hundreds of gallons of water and money per year
  • Constructed of the most durable materials for the toughest applications and environmental conditions, including in-floor cleaning systems
  • Single locking knob securely fastens head to filter tank, eliminating bolts or clamps
  • Long lasting, extra-large cartridge element with precision engineered core provides maximum flow and efficiency
  • Utilizes multiple reusable, reinforced polyester filter cartridge elements to provide a high degree of water clarity and long filter cycles with minimum care

    • Branch Availability

    content loaded

    Specifications

    • BrandHayward
    • ApplicationInground, Pool, Spa
    • Shipping Dimensions13.8 x 13.8 x 32.1 inch
    • Cartridges Required1
    • Design Flow Rate90 gal/min
    • Each Product Weight26 pound
    • Filter Tank Molding TypeInjection-Molded
    • Filtration Area90 square feet
    • Green or Energy Efficient ProductTrue
    • Master Carton Quantity1
    • Maximum Flow Rate90 gal/min
    • Maximum Working Pressure50 pounds per square inch
    • Minimum Sell Quantity1
    • Pallet Quantity18
    • Pipe Size2 inch
    • Plumbing Size2 inch
    • Plumbing Size FITNPT
    • Product Height30
    • Product Weight26 pound
    • Product Width13.375 inch
    • Side Clearance18 inch
    • Tank ColorBeige, Gray
    • Tank Diameter13.375 inch
    • Turnover 10hrs54000 gallon
    • Turnover 8hrs43200 gallon
    • Valve Plumbing Size2 inch
    • Vertical Clearance19 inch
    • UPC Code0610377205818

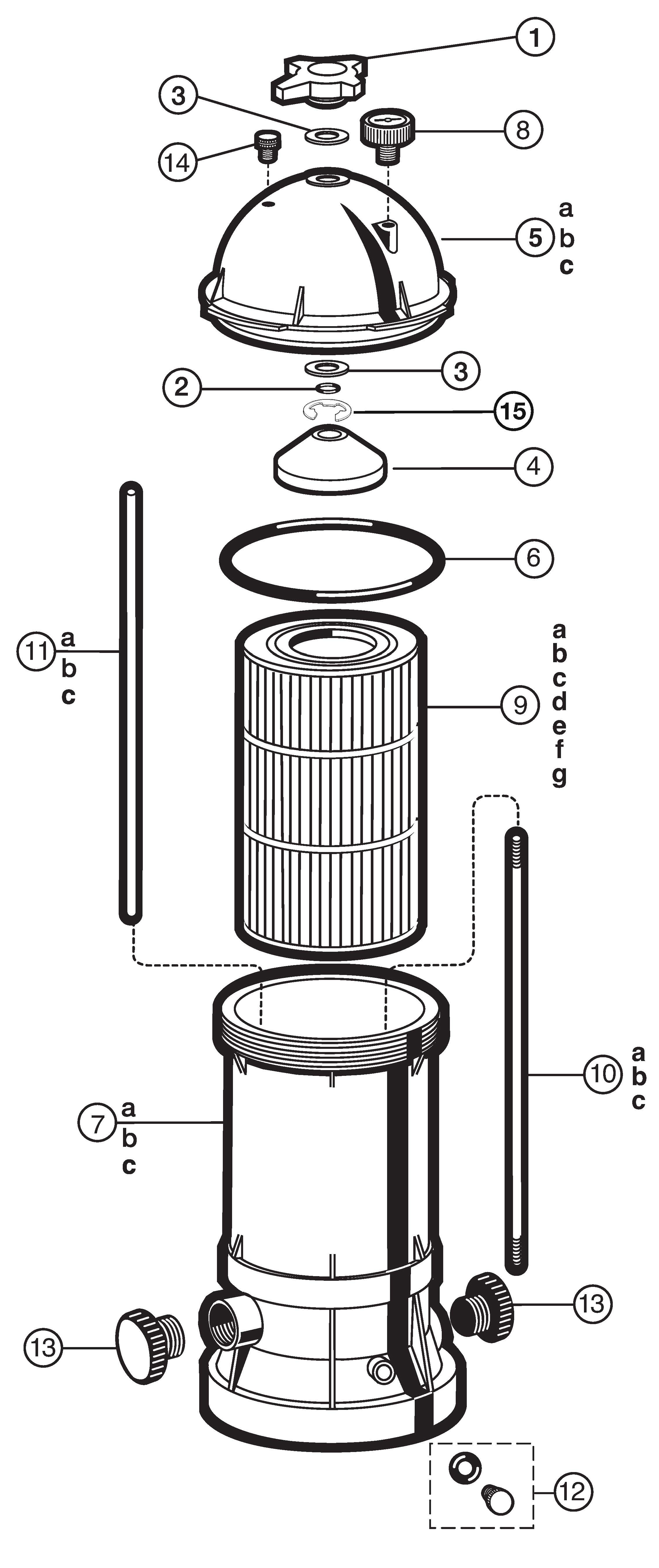

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    CX900G
    HAY-051-1464
    StarClear™ Plus Locking Knob
    Product #: HAY-051-1464
    Mfg #: CX900G
    -
    -
    CX1750G
    HAY-051-1528
    175 SqFt StarClear™ Plus Locking Knob
    Product #: HAY-051-1528
    Mfg #: CX1750G
    2
    2
    CX900H
    HAY-051-1465
    StarClear™ Plus Knob O-Ring
    Product #: HAY-051-1465
    Mfg #: CX900H
    2
    2
    O-288-9
    SPG-601-1148
    Drain Plug & Air Relief O-Ring
    Product #: SPG-601-1148
    Mfg #: O-288-9
    2
    2
    35505-1223
    SWQ-061-3955
    35505-1223 2" SM MPV ORING KIT
    Product #: SWQ-061-3955
    Mfg #: 35505-1223
    2
    2
    57006800
    AMP-251-1339
    Orange #2-211 O-Ring for Eclipse Side Mount Sand Filter
    Product #: AMP-251-1339
    Mfg #: 57006800
    3
    3
    CX900W
    CX900W WASHER
    Product #:
    Mfg #: CX900W
    3
    3
    CX900WPAK2
    HAY-051-1743
    StarClear Plus Knob Washer
    Product #: HAY-051-1743
    Mfg #: CX900WPAK2
    3
    3
    SPX0710Z16
    HAY-061-4086
    Non-Metallic Bearing
    Product #: HAY-061-4086
    Mfg #: SPX0710Z16
    4
    4
    CX900D
    HAY-051-1462
    StarClear Plus Guide Cone
    Product #: HAY-051-1462
    Mfg #: CX900D
    5a
    5a
    CX900B
    HAY-051-1461
    StarClear™ Plus Filter Head with Vent Valve
    Product #: HAY-051-1461
    Mfg #: CX900B
    6
    6
    CX900F
    HAY-051-1463
    StarClear™ Plus Filter Head O-Ring
    Product #: HAY-051-1463
    Mfg #: CX900F
    6
    6
    O-240-9
    SPG-601-1133
    Max-E-Glas/ Dura-Glas Ultra-Flow Seal Plate O-Ring
    Product #: SPG-601-1133
    Mfg #: O-240-9
    6
    6
    U9-228AZ
    STA-101-1090
    Max-E-Pro Seal Plate O-Ring
    Product #: STA-101-1090
    Mfg #: U9-228AZ
    6
    6
    39006000
    AMP-101-1012
    #2-449 Buna N Volute O-Ring for Ultra-Flow Pool Pump
    Product #: AMP-101-1012
    Mfg #: 39006000

    Wholegoods

    There are no wholegoods available.
