RUUD

Compact Series Pool Digital Heat Pump 85K BTU 208/230V

Product #:RUD-15-3605

Mfg. Part #:013605

  • This product is obsolete.
  • The superceded product was not found.

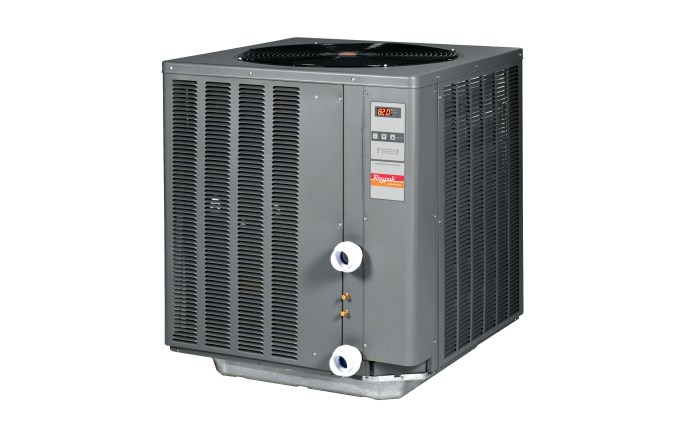

Ruud D4350 Compact Series Pool Heat Pump; 85K BTU, 208.230V, Digital Control, Titanium Tubing

RUUD

Compact Series Pool Digital Heat Pump 85K BTU 208/230V

Product #:RUD-15-3605

Mfg. Part #:013605

Description

Scroll compressors are quiet and efficient compared to piston type compressors. They provide higher efficiency, lower sound levels, superior durability and unsurpassed reliability. The unique design of a scroll compressor actually wears in over time, not out! The spiral titanium tube heat exchanger provides a corrosion-free waterway that can withstand the abuses of harsh pool chemistry. The spiral tube helps reduce deposit build-up and increases efficiency by performing a “scoop-and-lift” action.

Feature Bullets

  • 3 Blade Swept Wing Fan
  • Extremely Tough Composite Base
  • Scroll Compressor
  • Spiral Titanium Tube
  • Plumbing Connections Off-set 1-1/2” PVC union connections
  • Branch Availability

    content loaded

    Specifications

    • BrandRUUD
    • ApplicationPool
    • Shipping Dimensions35.25 x 31.25 x 31.25 inch
    • BTU Output85000 British thermal unit
    • Cabinet Depth31.25 inch
    • Cabinet Height35.25 inch
    • Cabinet Width31.25 inch
    • Commercial, Residential, or ProfessionalResidential
    • Compressor TypeScroll
    • Control TypeDigital
    • Each Product Weight237 pound
    • Electrical Input3.9 kilowatts
    • Flow Rate Max60 gal/min
    • Flow Rate Min15 gal/min
    • Frequency Rating (Hz)60
    • Heat Exchanger MaterialTitanium
    • Housing MaterialStainless Steel
    • Master Carton Quantity1
    • Min Circuit Ampacity34 amperage
    • Pallet Quantity1
    • PhaseSingle
    • Refrigerant ModelR-410A
    • UPC Code840891031383

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

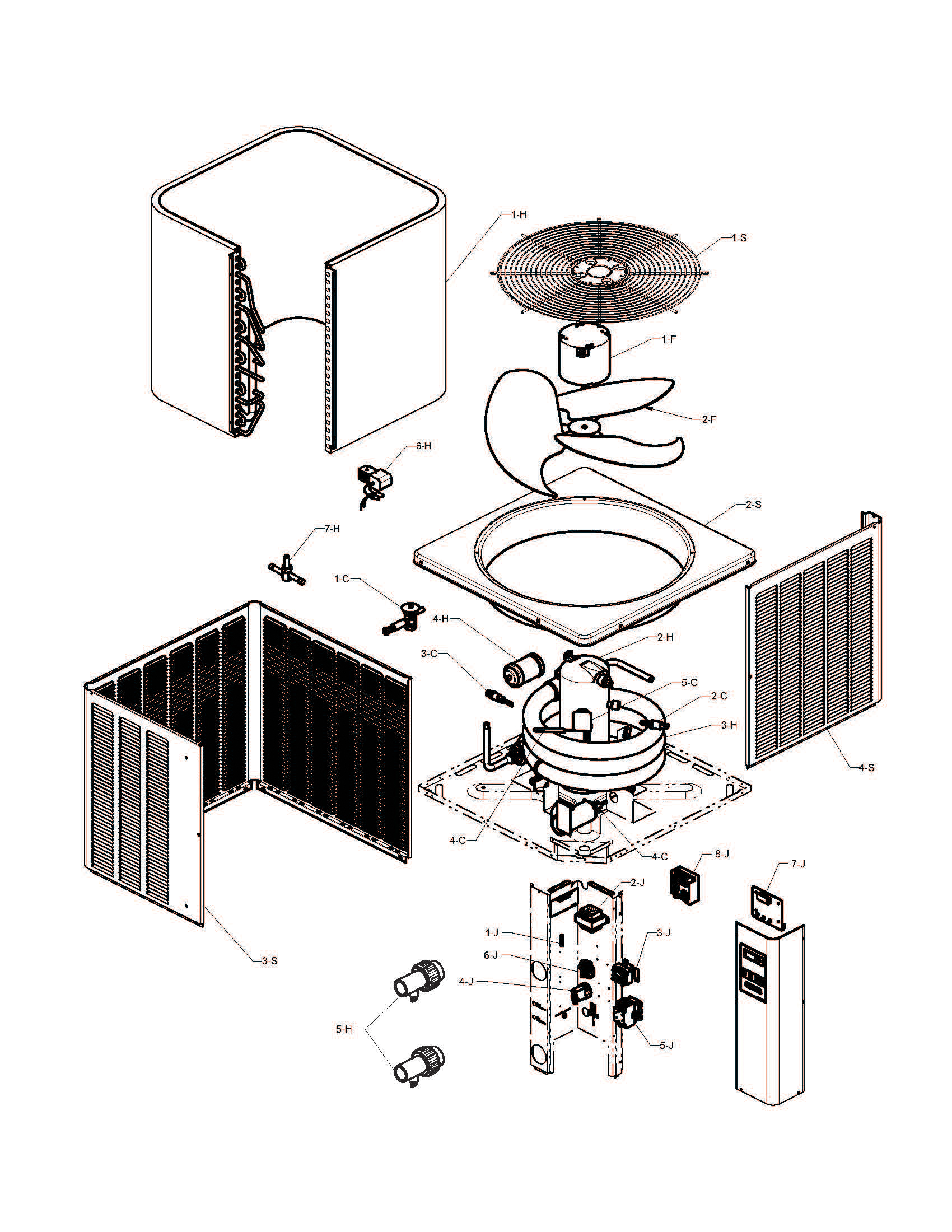

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1-C
    1-C
    H000273
    TX Valve
    Product #:
    Mfg #: H000273
    2-C
    2-C
    H000078
    RAY-151-8161
    Product #: RAY-151-8161
    Mfg #: H000078
    3-C
    3-C
    H000079
    RAY-151-8156
    Product #: RAY-151-8156
    Mfg #: H000079
    4-C
    4-C
    H000002
    RAY-151-3630
    Product #: RAY-151-3630
    Mfg #: H000002
    5-C
    5-C
    H000197
    RAY-151-8133
    Product #: RAY-151-8133
    Mfg #: H000197
    1-H
    1-H
    H000275
    RAY-151-8084
    H000275 32 SINGLEROW R410A EVAPORATOR COIL
    Product #: RAY-151-8084
    Mfg #: H000275
    2-H
    2-H
    H000277
    RAY-151-8106
    Product #: RAY-151-8106
    Mfg #: H000277
    3-H
    3-H
    H000278
    RAY-151-8364
    Product #: RAY-151-8364
    Mfg #: H000278
    4-H
    4-H
    H000188
    RAY-151-8266
    Product #: RAY-151-8266
    Mfg #: H000188
    5-H
    5-H
    H000318
    PVC Union with Built-In Drain
    Product #:
    Mfg #: H000318
    6-H
    6-H
    H000107
    RAY-151-8095
    Product #: RAY-151-8095
    Mfg #: H000107
    7-H
    7-H
    H000108
    RAY-151-8821
    Product #: RAY-151-8821
    Mfg #: H000108
    1-F
    1-F
    H000190
    RAY-151-8288
    Product #: RAY-151-8288
    Mfg #: H000190
    2-F
    2-F
    H000279
    Fan Blade
    Product #:
    Mfg #: H000279
    1-J
    1-J
    H000001
    RAY-151-3666
    Product #: RAY-151-3666
    Mfg #: H000001

    Wholegoods

    There are no wholegoods available.
