Dolphin M500 In Ground Robotic Pool Cleaner with Caddy and Remote

Product #:MAY-20-1082

Mfg. Part #:99991089-US

  • This product is obsolete.
  • The superceded product was not found.

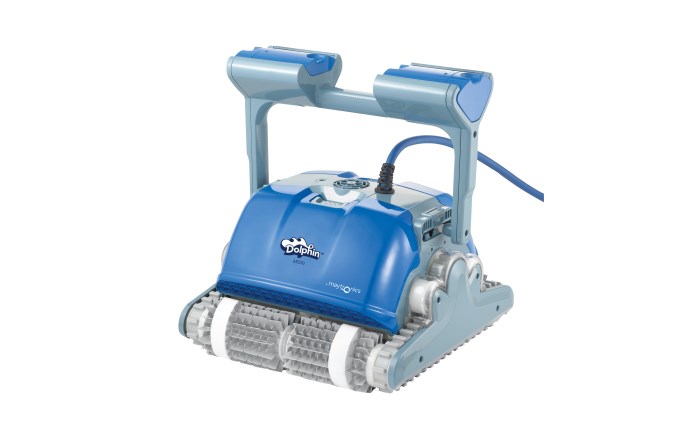

Maytronics 99991089-US Dolphin M500 In Ground Robotic Pool Cleaner with Caddy and Remote

Maytronics

Dolphin M500 In Ground Robotic Pool Cleaner with Caddy and Remote

Product #:MAY-20-1082

Mfg. Part #:99991089-US

Description

Maytronics 99991089-US Dolphin M500 In Ground Robotic Pool Cleaner with Caddy and Remote: maximize your enjoyment and relax, with remote controlled setup and programs, and intervention-free cleaning of the pool floor, walls and waterline.

Documents

Feature Bullets

  • Center scrubbing brush pushes the limits for waterline cleaning
  • Tangle-free swivel allows the M500 to move effortlessly around the pool
  • This versatile cleaner is the perfect solution for all pool surface types

    • Branch Availability

    content loaded

    Specifications

    • BrandMaytronics
    • ApplicationInground, Pool
    • Shipping Dimensions23.4 x 19.11 x 19.5 inch
    • Cable TypeSwivel
    • Caddy AvailableTrue
    • Cleaner TypeResidential, Robotic
    • ClimbsTrue
    • ColorGray, Blue
    • Each Product Weight54 pound
    • Filter AccessTop
    • Filter PorosityFine
    • Filter TypeCartridge
    • Full Filter IndicatorTrue
    • IncludesCaddy
    • Master Carton Quantity1
    • Minimum Sell Quantity1
    • Pallet Quantity16
    • Pool Cleaning FunctionalityFloor, Wall, Waterline
    • Timer AvailableTrue
    • Timer Mode SelectionsWeekly Timer
    • Cable Length60 foot
    • Cleaning Cycle Duration1 hour/2.5 hours/3.5 hours
    • Commercial, Residential, or ProfessionalResidential
    • Green or Energy Efficient ProductTrue
    • Motor Unit Voltage (VDC)24
    • Pool SizeUp to 50'
    • Product Weight24 pound
    • Remote ControlTrue
    • Suction Rate4233 gal/hr
    • UPC Code718117198700

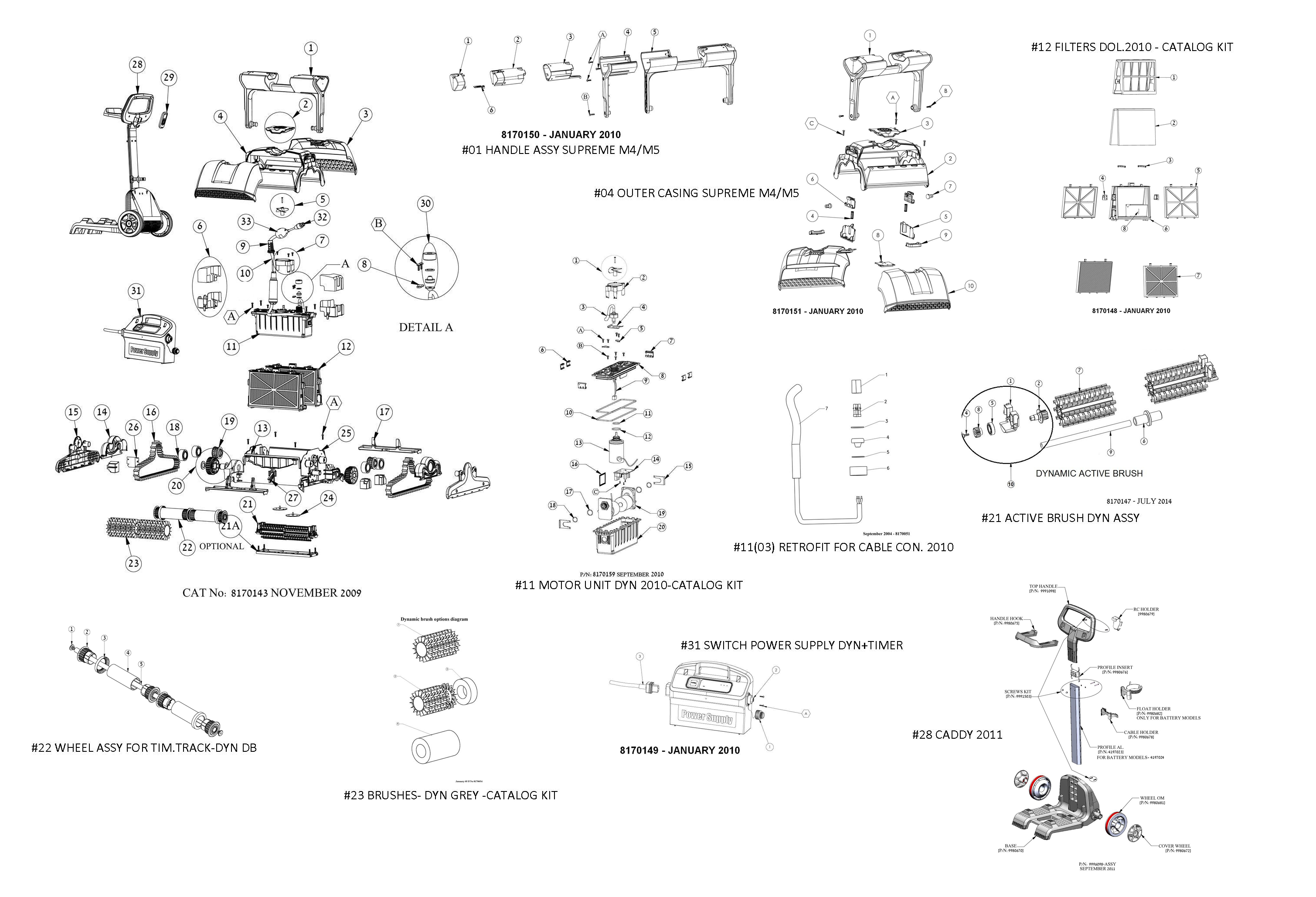

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    01
    01
    99957042-ASSY
    Handle Assy Supreme M4
    Product #:
    Mfg #: 99957042-ASSY
    01(01)
    01(01)
    9980830
    Cover Handle Float Supreme M400
    Product #:
    Mfg #: 9980830
    01(02)
    01(02)
    6250942
    Handle Float For M400
    Product #:
    Mfg #: 6250942
    01(03)
    01(03)
    9980820
    Handle Float For Supreme M4
    Product #:
    Mfg #: 9980820
    01(04)
    01(04)
    9980804
    Side Handle Cover For M400/M500
    Product #:
    Mfg #: 9980804
    01(05)
    01(05)
    9980814
    Main Handle For M400/M500
    Product #:
    Mfg #: 9980814
    01(06)
    01(06)
    9980887
    Button Float Locker Supreme M4
    Product #:
    Mfg #: 9980887
    02
    02
    9991045-ASSY
    Impeller Cover Supreme M4/5 Assy
    Product #:
    Mfg #: 9991045-ASSY
    03
    03
    9991047-ASSY
    Cartridge Door Kit Supreme M4/5
    Product #:
    Mfg #: 9991047-ASSY
    04
    04
    99952032-ASSY
    Outer Casing For Supreme M4,M5,M400,M500
    Product #:
    Mfg #: 99952032-ASSY
    04(02)
    04(02)
    9980840
    Upper Shell
    Product #:
    Mfg #: 9980840
    04(03)
    04(03)
    9980850
    Impeller Cover Grey
    Product #:
    Mfg #: 9980850
    04(04)
    04(04)
    3917031
    MAY-201-9584
    Handle Clip Spring for Dolphin™ Robotic Pool Cleaners
    Product #: MAY-201-9584
    Mfg #: 3917031
    04(05)
    04(05)
    9980885
    Inside Handle Cover
    Product #:
    Mfg #: 9980885
    04(06)
    04(06)
    9980884
    Handle Lock - Spring
    Product #:
    Mfg #: 9980884

    Wholegoods

    There are no wholegoods available.
