Kreepy Krauly® Platinum™ Pressure In Ground Pressure Side Pool Cleaner

Product #:LET-20-250

Mfg. Part #:LL505PM

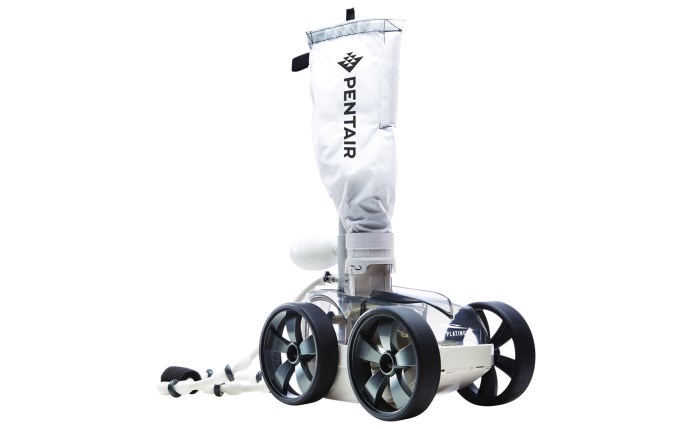

Pentair LL505PM Kreepy Krauly® Platinum™ Pressure In Ground Pressure Side Pool Cleaner

Pentair

Kreepy Krauly® Platinum™ Pressure In Ground Pressure Side Pool Cleaner

Product #:LET-20-250

Mfg. Part #:LL505PM

Description

The Pentair Kreepy Krauly® Platinum™ cleaner is simply the most powerful pressure-side cleaner available. It's the ideal choice for inground pools exposed to higher loads of leaves and debris. A leading choice for pools with yards with lush landscaping and tougher cleaning challenges. White/Gray

Documents

Feature Bullets

  • Dual thrust jets provide maximum power for speed and suction so most pools are cleaned in just 1-3 hr

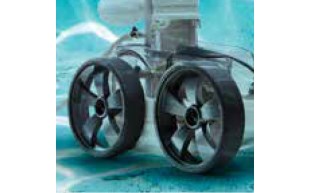

  • Front-wheel drive and heavily treaded tires provide maximum traction on inclined surfaces to assure total pool wall and floor coverage
  • Four wheel design prevents tipping (common with 3 wheel cleaners) for uninterrupted and unattended performance
  • Large capacity debris channel and huge intake throat easily pick up larger leaves and debris
  • The Legend Platinum automatic pool cleaner comes ready to connect to our a booster Pump (P per N LA-MS05 and P per N LA01N) sold separately

    • Branch Availability

    content loaded

    Specifications

    • BrandPentair
    • ApplicationInground, Pool
    • Shipping Dimensions23 x 11 x 24 inch
    • Cleaner TypeResidential, Pressure, Suction Side
    • ColorWhite, Gray
    • Commercial, Residential, or ProfessionalResidential
    • Drive MechanismFront wheel drive
    • Each Product Weight21 pound
    • FinishStandard
    • Master Carton Quantity1
    • Minimum Sell Quantity1
    • Pallet Quantity16
    • Pool Cleaning FunctionalityFloor, Wall
    • Traction System4 Wheels
    • UPC Code788379851637

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

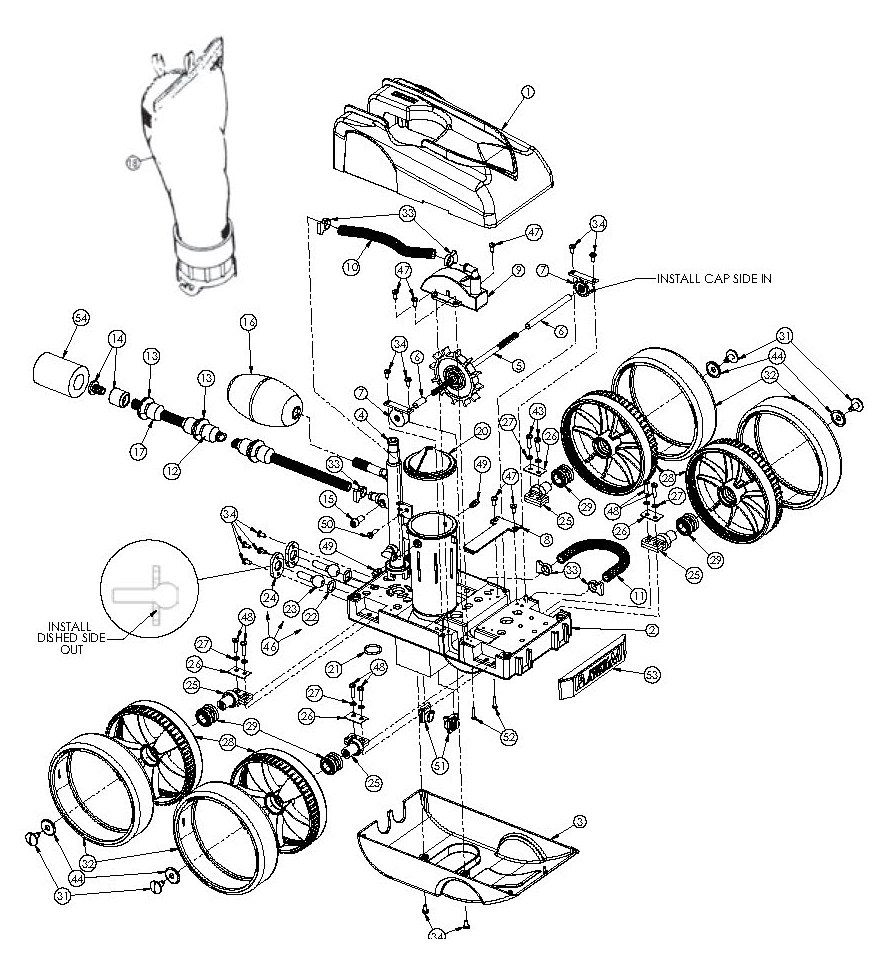

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    LLU5PM
    LET-201-0233
    Gray Legend®/Platinum™ Top Cover
    Product #: LET-201-0233
    Mfg #: LLU5PM
    Notes:
    Gray
    2
    2
    LLU145N
    LET-201-2512
    Main Frame for Kreepy Krauly® Legend® 4-Wheel Pool Cleaner
    Product #: LET-201-2512
    Mfg #: LLU145N
    Notes:
    White
    2
    2
    LLU145NG
    Main Frame
    Product #:
    Mfg #: LLU145NG
    Notes:
    Gray
    3
    3
    EU10N
    LET-201-2487
    Legend® 4-Wheel Bottom Cover
    Product #: LET-201-2487
    Mfg #: EU10N
    Notes:
    White
    3
    3
    LLU10NG
    LET-201-1052
    Gray Kreepy Krauly® Platinum™ Bottom Cover
    Product #: LET-201-1052
    Mfg #: LLU10NG
    Notes:
    Gray
    4
    4
    LLU6
    LET-201-2083
    Feed Mast with O-Ring
    Product #: LET-201-2083
    Mfg #: LLU6
    Notes:
    White
    4
    4
    LLU6G
    LET-201-2600
    Gray Feed Mast with O-Ring
    Product #: LET-201-2600
    Mfg #: LLU6G
    Notes:
    Gray
    5
    5
    EC86
    LET-201-2477
    Turbine Drive Shaft Complete for Legend Cleaner
    Product #: LET-201-2477
    Mfg #: EC86
    Notes:
    Complete
    6
    6
    EC83
    LET-201-1206
    Turbine Spacers
    Product #: LET-201-1206
    Mfg #: EC83
    7
    7
    EC80
    LET-201-2476
    Turbine Bearing for Legend Cleaner 2 Pack
    Product #: LET-201-2476
    Mfg #: EC80
    Notes:
    Gray
    8
    8
    EA40
    LET-201-2741
    Turbine Shaft Shield
    Product #: LET-201-2741
    Mfg #: EA40
    Notes:
    White
    8
    8
    LLA40G
    Turbine Shaft
    Product #:
    Mfg #: LLA40G
    Notes:
    Gray
    9
    9
    EC110
    LET-201-2411
    Turbine Cover with Elbow LC110
    Product #: LET-201-2411
    Mfg #: EC110
    Notes:
    w/ Elbow-White
    9
    9
    LLC110PM
    Turbine Cover
    Product #:
    Mfg #: LLC110PM
    Notes:
    w/ Elbow-Gray
    10
    10
    EX120
    Turbine Cover Hose
    Product #:
    Mfg #: EX120
    Notes:
    9 in. White
