Brands
Jandy

Legacy™ Liquid Propane Gas Heater with Electronic Ignition 325K BTU

Product #:LAR-15-408

Mfg. Part #:LRZ325EP

  • This product is obsolete.
  • The superceded product was not found.

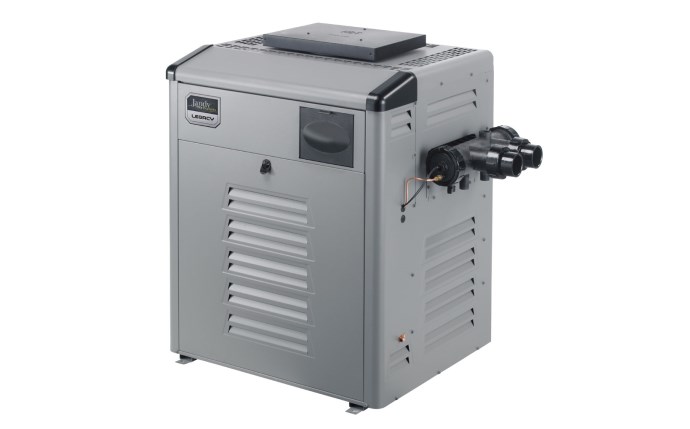

Jandy Legacy LRZ325EP Liquid Propane Heater with Electronic Ignition 325K BTU

Jandy

Legacy™ Liquid Propane Gas Heater with Electronic Ignition 325K BTU

Product #:LAR-15-408

Mfg. Part #:LRZ325EP

Description

Jandy Legacy LRZ325EP Liquid Propane Heater with Electronic Ignition 325K BTU. Legacy pool heaters deliver exceptional pool and spa comfort year‐round, while maximizing combustion efficiency for economical heating and are available in two models, electronic ignition and millivolt standing pilot.

Documents

Feature Bullets

  • Ceramic fiber combustion chamber for lightweight, compact design;
  • Copper heat exchanger and Flo-Thru baffles provide efficient heat transfer and lower the amount of energy needed to heat your pool;
  • Reliable hot surface ignition systems provide trouble-free operation on LRZE model;
  • Digital control of set-points;
  • Self-diagnostics and communication with AquaLink® RS Systems;
  • Polymer headers with CPVC 2‐2.5 Inch universal union connections.

    • Branch Availability

    content loaded

    Specifications

    • BrandJandy
    • ApplicationOutdoor, Pool, Spa
    • Shipping Dimensions45 x 30.5 x 47.5 inch
    • BTU Input325000 British thermal unit
    • Cabinet Depth26.375 inch
    • Cabinet Height39.375 inch
    • Cabinet Width26.875 inch
    • Commercial, Residential, or ProfessionalResidential
    • Control TypeDigital Electric
    • Each Product Weight256 pound
    • Flow Rate Max125 gal/min
    • Flow Rate Min30 gal/min
    • Flue Diameter8 inch
    • Frequency Rating (Hz)60
    • Fuel TypePropane
    • Gas Connection0.75 inch
    • Gas Connection FITNPT
    • Green or Energy Efficient ProductTrue
    • Header MaterialPolymer
    • Indoor Drafthood26.5 inch
    • Master Carton Quantity1
    • Minimum Sell Quantity1
    • Pallet Quantity1
    • PhaseSingle
    • Tubing MaterialCopper
    • Voltage120V, 240V
    • UPC Code052337031905

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

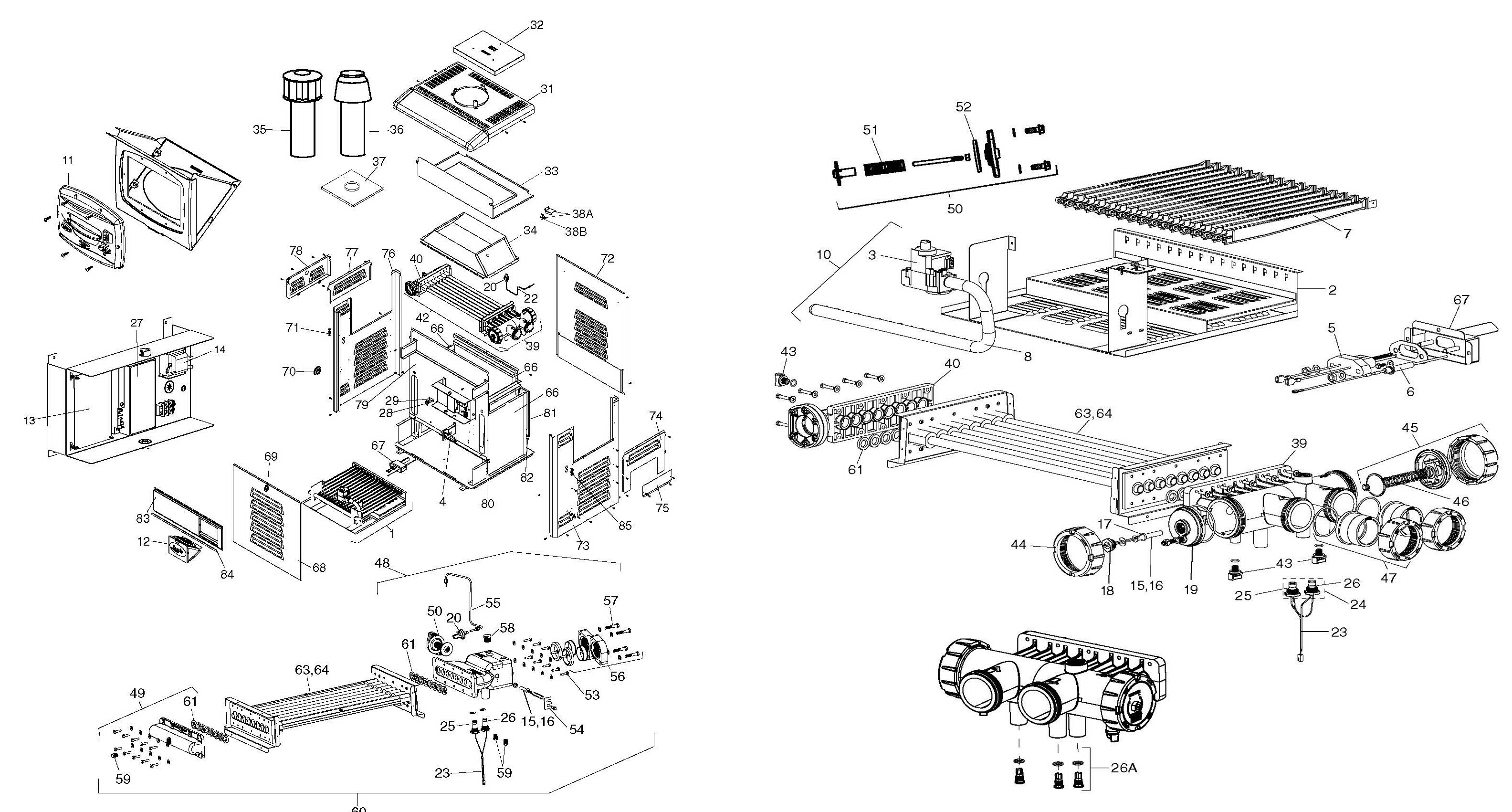

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    R0468901
    LAR-151-1852
    R0468901 LRZE 125 NG BURNER TRAY ASSY
    Product #: LAR-151-1852
    Mfg #: R0468901
    1
    1
    R0468902
    LAR-151-1857
    LRZE Burner Tray Assembly Natural Model 175
    Product #: LAR-151-1857
    Mfg #: R0468902
    1
    1
    R0468904
    LAR-151-1864
    LRZE Burner Tray Assembly Natural Model 325
    Product #: LAR-151-1864
    Mfg #: R0468904
    1
    1
    R0468905
    LAR-151-1868
    Natural Gas Burner Tray Assembly for LRZE 400 Pool/Spa Heater
    Product #: LAR-151-1868
    Mfg #: R0468905
    1
    1
    R0469001
    LAR-151-1853
    R0469001 LRZE 125 LP BURNER TRAY ASSY
    Product #: LAR-151-1853
    Mfg #: R0469001
    1
    1
    R0469002
    LAR-151-1858
    R0469002 LRZE 175 LP BURNER TRAY ASSY
    Product #: LAR-151-1858
    Mfg #: R0469002
    1
    1
    R0469003
    LAR-151-1861
    LRZE Burner Tray Assembly Liquid Propane for Model 250 Pool/Spa Heater
    Product #: LAR-151-1861
    Mfg #: R0469003
    1
    1
    R0469004
    LAR-151-1865
    LRZE Burner Tray Assembly Liquid Propane for Model 325 Pool/Spa Heater
    Product #: LAR-151-1865
    Mfg #: R0469004
    1
    1
    R0469005
    LAR-151-9525
    LRZE Propane Gas Burner Tray Assembly for Model 400 Pool/Spa Heater
    Product #: LAR-151-9525
    Mfg #: R0469005
    2
    2
    R0469101
    LAR-151-1825
    R0469101 LRZM/ LRZE 125 BURNER TRAY SHELF
    Product #: LAR-151-1825
    Mfg #: R0469101
    2
    2
    R0469102
    LAR-151-1971
    R0469102 LRZE/ LRZM 175 BURNER TRAY SHELF
    Product #: LAR-151-1971
    Mfg #: R0469102
    2
    2
    R0469104
    LAR-151-1973
    R0469104 LRZE/ LRZM 235 BURNER TRAY SHELF
    Product #: LAR-151-1973
    Mfg #: R0469104
    2
    2
    R0469105
    LAR-151-1974
    Burner Tray Shelf Only for Model 400 Pool/Spa Heaters
    Product #: LAR-151-1974
    Mfg #: R0469105
    3
    3
    R0494500
    LAR-151-1122
    Natural Gas Valve for Legacy™ LRZE Pool/Spa Heater
    Product #: LAR-151-1122
    Mfg #: R0494500
    3
    3
    R0494600
    LAR-151-1123
    Propane Gas Valve for Legacy™ LRZE Pool/Spa Heater
    Product #: LAR-151-1123
    Mfg #: R0494600

    Wholegoods

    There are no wholegoods available.
