RUUD
Liquid Propane Pool Heater with Digital Ignition 150K BTU 0-2K
Product #:RUD-15-4822
Mfg. Part #:014822
- This product is obsolete.
- The superceded product was not found.

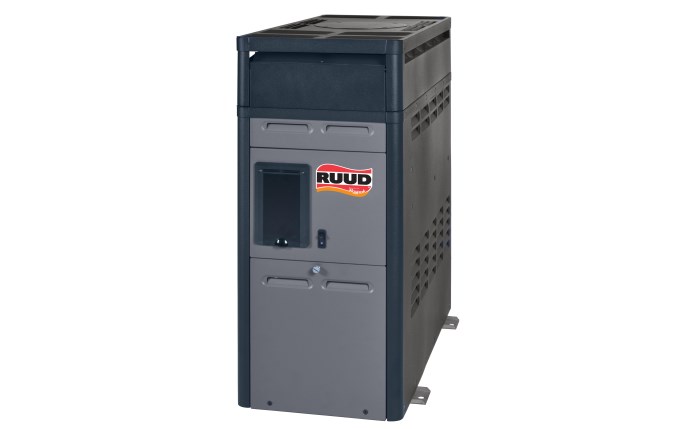

Ruud P-D156A Digital Above-Ground Pool/Spa Heater; 0-1999 ft Elevation, 150K BTU, Liquid Propane, Copper Tubing
RUUD
Liquid Propane Pool Heater with Digital Ignition 150K BTU 0-2K
Product #:RUD-15-4822
Mfg. Part #:014822
Description
The Ruud 156 is the perfect choice for larger above-ground pools, spas and inground pools. The 156 has up to 50% more BTUs than the competitors above-ground pool heaters. More BTUs means quicker heat-up. Extend your swim season, open your pool earlier and close it later. Your pool is always ready when you have a Ruud on duty.
Documents
No documents available
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandRUUD
- ApplicationPool, Spa
- Shipping Dimensions32 x 30 x 16 inch
- BTU Input150000 British thermal unit
- Cabinet Depth27 inch
- Cabinet Height27.5 inch
- Cabinet Width12 inch
- Commercial, Residential, or ProfessionalCommercial, Residential
- Control TypeDigital Electronic
- Each Product Weight99.7 pound
- Elevation Max1999 foot
- Elevation Min0 foot
- Flue Diameter6 inch
- Frequency Rating (Hz)60
- Fuel TypePropane
- Gas Connection0.5 inch
- Gas Connection FITNPT
- Green or Energy Efficient ProductTrue
- Header MaterialPolymer
- Indoor Drafthood55.5 inch
- Master Carton Quantity1
- Minimum J16.25 inch
- Minimum Sell Quantity1
- Pallet Quantity1
- PhaseSingle
- Stackless Outdoor Top27.5 inch
- Tubing MaterialCopper
- Voltage120V, 240V
- UPC Code840891032304
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

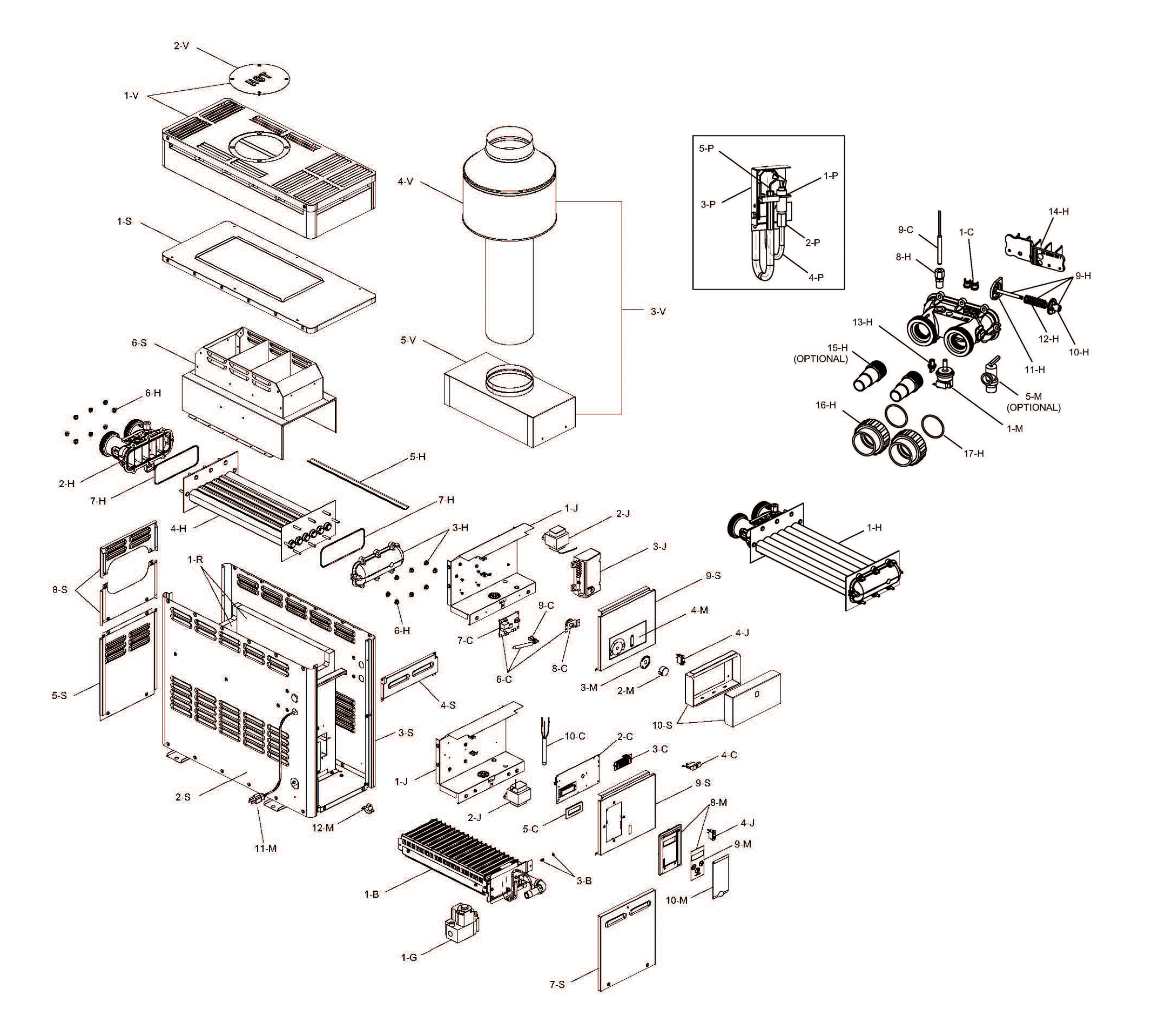

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1-B
1-B
014842A
Burner Tray Nat (Sea Level)
Product #:
Mfg #: 014842A
Notes:
For altitudes above 2000 feet above sea level, consult the factory. 1-B
1-B
014846A
Burner Tray Pro (Sea Level)
Product #:
Mfg #: 014846A
Notes:
For altitudes above 2000 feet above sea level, consult the factory. 1-B
1-B
014850A
Burner Tray w/Gas Valve Nat (Sea Level)
Product #:
Mfg #: 014850A
Notes:
For altitudes above 2000 feet above sea level, consult the factory. 1-B
1-B
014854A
Burner Tray w/Gas Valve Pro (Sea Level)
Product #:
Mfg #: 014854A
Notes:
For altitudes above 2000 feet above sea level, consult the factory. 3-B
3-B
014858F
RAY-151-8593
Product #: RAY-151-8593
Mfg #: 014858F
Notes:
For altitudes above 2000 feet above sea level, consult the factory. 3-B
3-B
014862F
RAY-151-8592
Product #: RAY-151-8592
Mfg #: 014862F
Notes:
For altitudes above 2000 feet above sea level, consult the factory. 1-C
2-C
2-C
013464F
RAY-151-3724
013464F IID PC BOARD CONTROLLER (AFTER 11/2003)
Product #: RAY-151-3724
Mfg #: 013464F
3-C
3-C
013640F
RAY-151-3850
Product #: RAY-151-3850
Mfg #: 013640F
4-C
5-C
10-C
10-C
009577F
RAY-151-1208
Product #: RAY-151-1208
Mfg #: 009577F
1-G
1-G
014867F
RAY-151-8339
Product #: RAY-151-8339
Mfg #: 014867F
1-G
1-G
014868F
RAY-151-8341
Product #: RAY-151-8341
Mfg #: 014868F
1-H
Wholegoods
There are no wholegoods available.
