Raypak

Raypak 206A Digital Cast Iron Asme Pool and Spa Heater #50 199K BTU

Product #:RAY-15-0198

Mfg. Part #:010198

  • This product is obsolete.
  • The superceded product was not found.

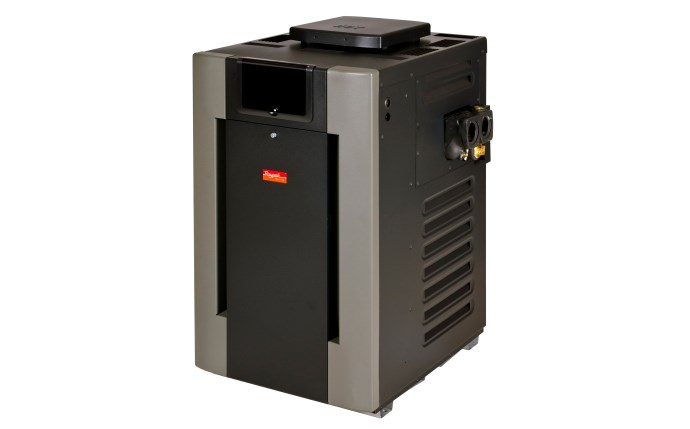

Raypak C-R206A Digital Cast Iron ASME Pool/Spa Heater; 199500 BTU, Natural, #50 Burner, Cupro-Nickel Tubing

Raypak

Raypak 206A Digital Cast Iron Asme Pool and Spa Heater #50 199K BTU

Product #:RAY-15-0198

Mfg. Part #:010198

Description

Raypak offers a complete line of gas heaters to fit almost every application. These units meet the ASME pressure vessel requirements demanded by code for commercial installations over 200,000 BTUH and are certified to the ANSI Z21.56 pool heater standard. So dive in and take a look at the Raypak heater that can meet your exact needs.

Feature Bullets

  • Excellent for use in chlorinated and salt water pools
  • Engineered to take the brunt of the corrosion that naturally occurs over time (erosion of the ProTek Shield means it’s working!)
  • Utilizes breakthrough patent pending technology
  • Compact design
  • Easy to replace, saving you time and money
  • Branch Availability

    content loaded

    Specifications

    • BrandRaypak
    • ApplicationPool, Spa
    • Shipping Dimensions44.5 x 30 x 25 inch
    • BTU Input199500 British thermal unit
    • Burner Orifice Size#50
    • Cabinet Depth28 inch
    • Cabinet Height38 inch
    • Cabinet Width20 inch
    • Commercial, Residential, or ProfessionalCommercial
    • Control TypeDigital Electronic
    • Each Product Weight219 pound
    • Elevation Max2000 foot
    • Elevation Min0 foot
    • Flow Rate Max125 gal/min
    • Flow Rate Min125 gal/min
    • Flue Diameter6 inch
    • Frequency Rating (Hz)60
    • Fuel TypeNatural Gas
    • Gas Connection0.75 inch
    • Gas Connection FITNPT
    • Green or Energy Efficient ProductTrue
    • Header MaterialCast Iron, Glass
    • High Altitude ModelFalse
    • Indoor Drafthood61.625 inch
    • Minimum J11.875 inch
    • Minimum Sell Quantity1
    • PhaseSingle
    • Stackless Outdoor Top40 inch
    • Standards ApprovalsASME Certified
    • Tubing MaterialCupro Nickel
    • Voltage115V, 230V
    • UPC Code840891015802

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

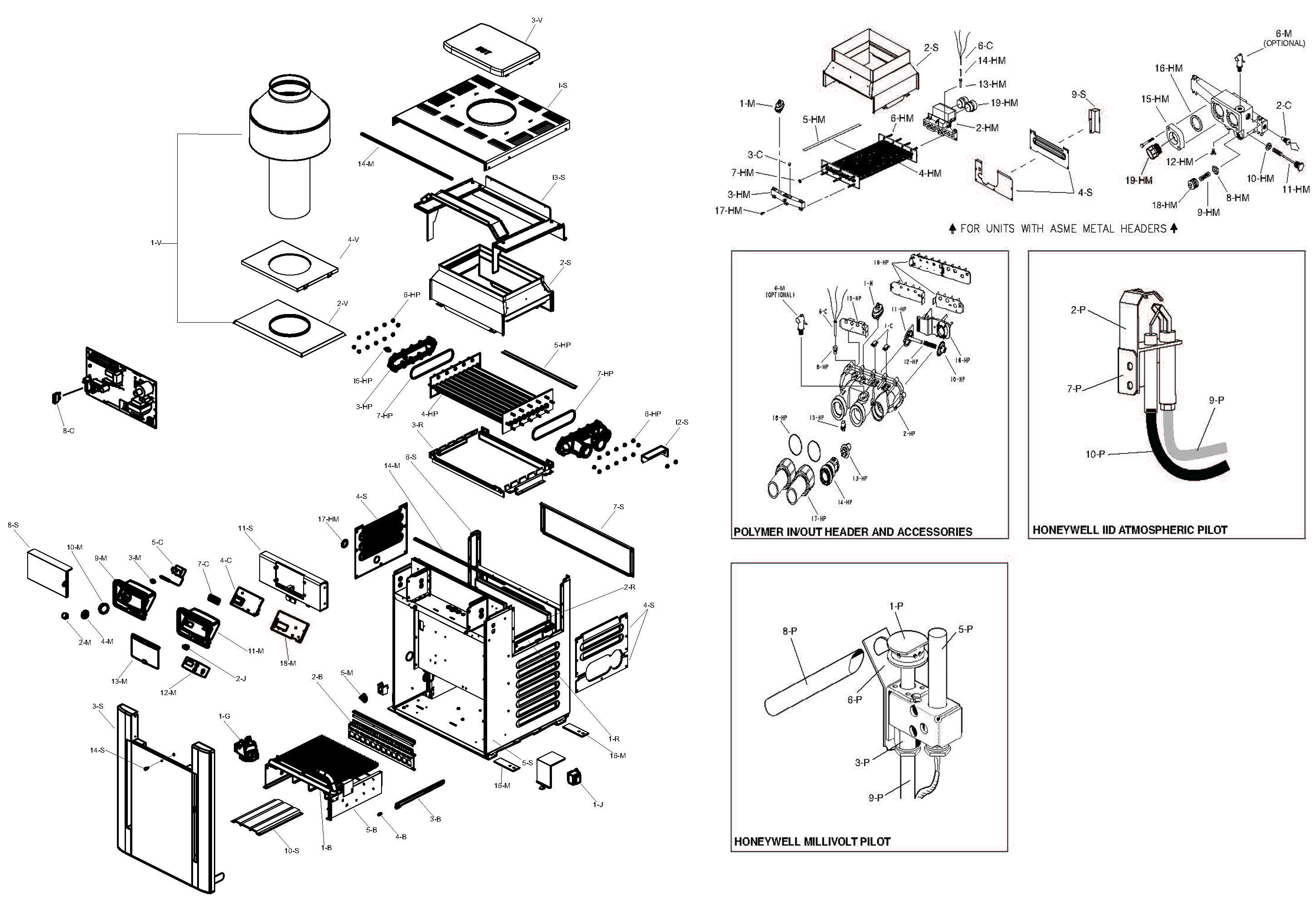

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1-B
    1-B
    010395F
    RAY-151-8760
    Product #: RAY-151-8760
    Mfg #: 010395F
    1-B
    1-B
    010399F
    RAY-151-8762
    Product #: RAY-151-8762
    Mfg #: 010399F
    1-B
    1-B
    010407F
    RAY-151-8761
    Product #: RAY-151-8761
    Mfg #: 010407F
    1-B
    1-B
    010411F
    RAY-151-8763
    Product #: RAY-151-8763
    Mfg #: 010411F
    1-B
    1-B
    010403F
    RAY-151-8764
    Product #: RAY-151-8764
    Mfg #: 010403F
    2-B
    2-B
    010415F
    RAY-151-8037
    Product #: RAY-151-8037
    Mfg #: 010415F
    3-B
    3-B
    100-10000414
    RAY-151-1123
    Product #: RAY-151-1123
    Mfg #: 100-10000414
    4-B
    4-B
    350079F
    RAY-151-1213
    Product #: RAY-151-1213
    Mfg #: 350079F
    4-B
    4-B
    350080F
    RAY-151-0080
    350080F #51 NG BURNER ORIFICE
    Product #: RAY-151-0080
    Mfg #: 350080F
    4-B
    4-B
    350081F
    RAY-151-0081
    Product #: RAY-151-0081
    Mfg #: 350081F
    4-B
    4-B
    350347F
    RAY-151-8598
    Product #: RAY-151-8598
    Mfg #: 350347F
    4-B
    4-B
    350083F
    RAY-151-1215
    Product #: RAY-151-1215
    Mfg #: 350083F
    4-B
    4-B
    350087F
    Propane Gas Burner Orifice #58
    Product #:
    Mfg #: 350087F
    Notes:
    FOR INSTALLATION AT OVER 2,000 FEET ABOVE SEA LEVEL, DERATE 4% PER I,000 FEET ABOVE SEA LEVEL
    4-B
    4-B
    350350F
    RAY-151-1365
    Product #: RAY-151-1365
    Mfg #: 350350F
    4-B
    4-B
    350351F
    RAY-151-1344
    Product #: RAY-151-1344
    Mfg #: 350351F
