Raypak
Raypak 267A Natural Gas Low NOx Asme Pool and Spa Heater #26 266K BTU
Product #:RAY-15-9293
Mfg. Part #:009293
- This product is obsolete.
- The superceded product was not found.

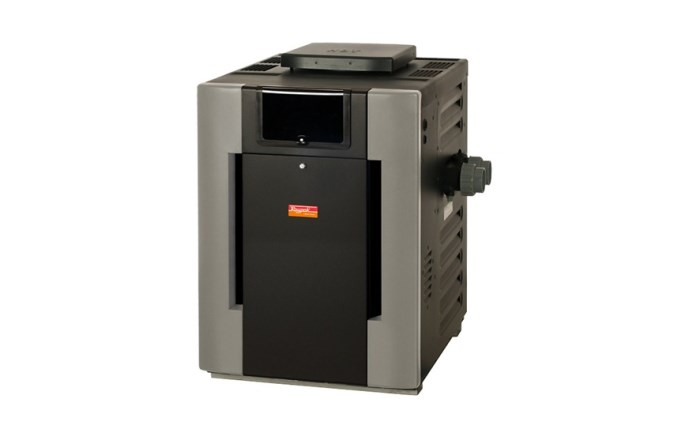

Raypak C-R267A Digital Cast Iron Low NOx ASME Pool/Spa Heater; 266000 BTU, Natural, #26 Burner, Copper Tubing
Raypak
Raypak 267A Natural Gas Low NOx Asme Pool and Spa Heater #26 266K BTU
Product #:RAY-15-9293
Mfg. Part #:009293
Description
Raypak Low Emissions units use combustion control to minimize levels of nitrogen oxides (NOx). These units meet emissions standards in all Low NOx areas, from Los Angeles (SCAQMD rule 1146.2 certified) to the San Joaquin Valley (SJAPCD rule 4308) and any
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandRaypak
- ApplicationPool, Spa
- Shipping Dimensions39 x 31 x 28 inch
- BTU Input266000 British thermal unit
- Burner Orifice Size#26
- Cabinet Depth28 inch
- Cabinet Height31.8125 inch
- Cabinet Width23 inch
- Commercial, Residential, or ProfessionalCommercial
- Control TypeDigital Electronic
- Each Product Weight233 pound
- Elevation Max5000 foot
- Elevation Min0 foot
- Flow Rate Max125 gal/min
- Flow Rate Min125 gal/min
- Flue Diameter7 inch
- Frequency Rating (Hz)60
- Fuel TypeNatural Gas
- Gas Connection0.75 inch
- Gas Connection FITNPT
- Green or Energy Efficient ProductTrue
- Header MaterialCast Iron, Glass
- High Altitude ModelFalse
- Indoor Drafthood56 inch
- Master Carton Quantity1
- Minimum J11.125 inch
- Minimum Sell Quantity1
- Pallet Quantity1
- PhaseSingle
- Stackless Outdoor Top34 inch
- Standards ApprovalsASME Certified
- Tubing MaterialCopper
- Voltage115V, 230V
- UPC Code840891013518
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

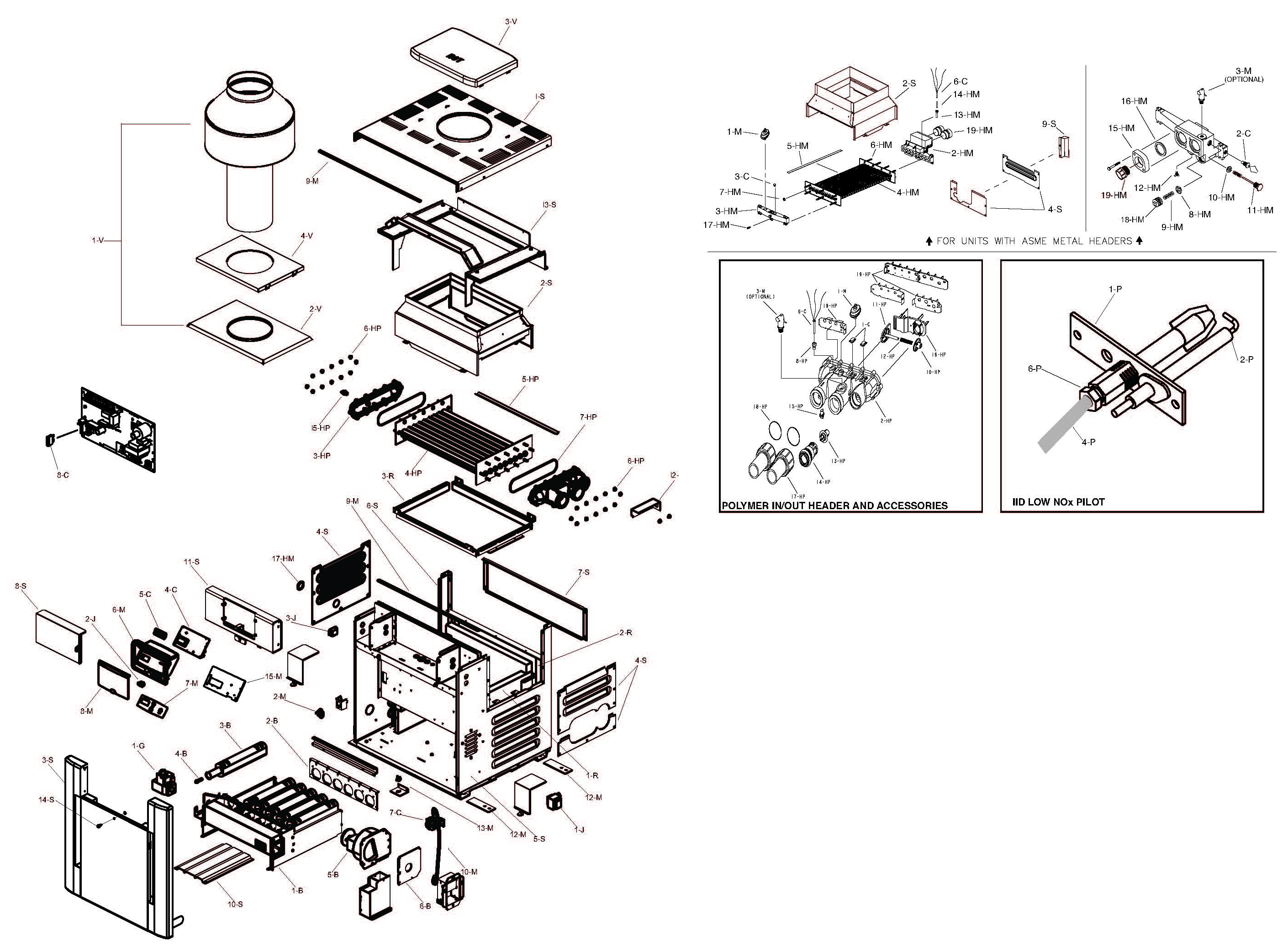

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1-B
1-B
010344F
RAY-151-1487
Product #: RAY-151-1487
Mfg #: 010344F
1-B
1-B
010085F
RAY-151-8773
Product #: RAY-151-8773
Mfg #: 010085F
2-B
2-B
010255F
RAY-151-8035
Product #: RAY-151-8035
Mfg #: 010255F
3-B
3-B
310732
RAY-151-3620
310732 207- 407 BURNER
Product #: RAY-151-3620
Mfg #: 310732
4-B
4-B
351632
Burner Orifice Nat. #26 (0-5000)
Product #:
Mfg #: 351632
5-B
5-B
010042F
RAY-151-1251
Product #: RAY-151-1251
Mfg #: 010042F
7-B
6-B
6-B
010339F
RAY-151-8097
Product #: RAY-151-8097
Mfg #: 010339F
1-C
2-C
2-C
600892B
RAY-151-3609
Product #: RAY-151-3609
Mfg #: 600892B
3-C
3-C
600893B
RAY-151-3610
Product #: RAY-151-3610
Mfg #: 600893B
4-C
4-C
013464F
RAY-151-3724
013464F IID PC BOARD CONTROLLER (AFTER 11/2003)
Product #: RAY-151-3724
Mfg #: 013464F
5-C
5-C
013640F
RAY-151-3850
Product #: RAY-151-3850
Mfg #: 013640F
6-C
6-C
009577F
RAY-151-1208
Product #: RAY-151-1208
Mfg #: 009577F
7-C
Wholegoods
There are no wholegoods available.
