Raypak

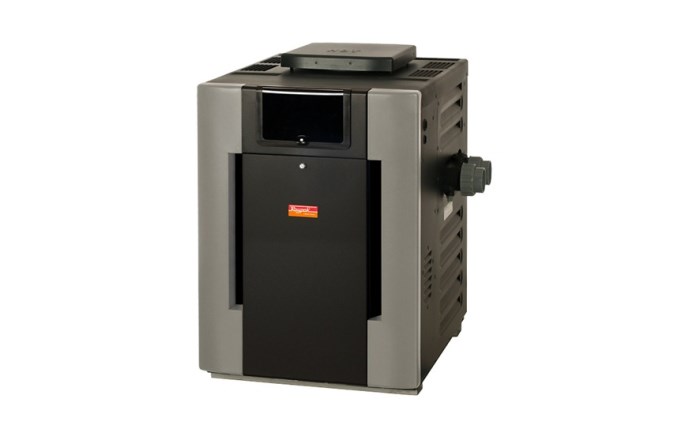

Raypak 337A Natural Gas Low NOx Asme Pool and Spa Heater #26 332K BTU
Product #:RAY-15-9294
Mfg. Part #:009294
- This product is obsolete.
- The superceded product was not found.
Raypak C-R337A Digital Cast Iron Low NOx ASME Pool/Spa Heater; 332500 BTU, Natural, #26 Burner, Copper Tubing
Raypak
Raypak 337A Natural Gas Low NOx Asme Pool and Spa Heater #26 332K BTU
Product #:RAY-15-9294
Mfg. Part #:009294
Description
Raypak Low Emissions units use combustion control to minimize levels of nitrogen oxides (NOx). These units meet emissions standards in all Low NOx areas, from Los Angeles (SCAQMD rule 1146.2 certified) to the San Joaquin Valley (SJAPCD rule 4308) and any
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandRaypak
- ApplicationPool, Spa
- Shipping Dimensions38 x 31 x 30 inch
- BTU Input332500 British thermal unit
- Burner Orifice Size#26
- Cabinet Depth28 inch
- Cabinet Height31.8125 inch
- Cabinet Width26 inch
- Commercial, Residential, or ProfessionalCommercial
- Control TypeDigital Electronic
- Each Product Weight249 pound
- Elevation Max5000 foot
- Elevation Min0 foot
- Flow Rate Max125 gal/min
- Flow Rate Min125 gal/min
- Flue Diameter8 inch
- Frequency Rating (Hz)60
- Fuel TypeNatural Gas
- Gas Connection0.75 inch
- Gas Connection FITNPT
- Green or Energy Efficient ProductTrue
- Header MaterialCast Iron, Glass
- High Altitude ModelFalse
- Indoor Drafthood57 inch
- Master Carton Quantity1
- Minimum J10.75 inch
- Minimum Sell Quantity1
- Pallet Quantity1
- PhaseSingle
- Stackless Outdoor Top34 inch
- Standards ApprovalsASME Certified
- Tubing MaterialCopper
- Voltage115V, 230V
- UPC Code840891018070
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

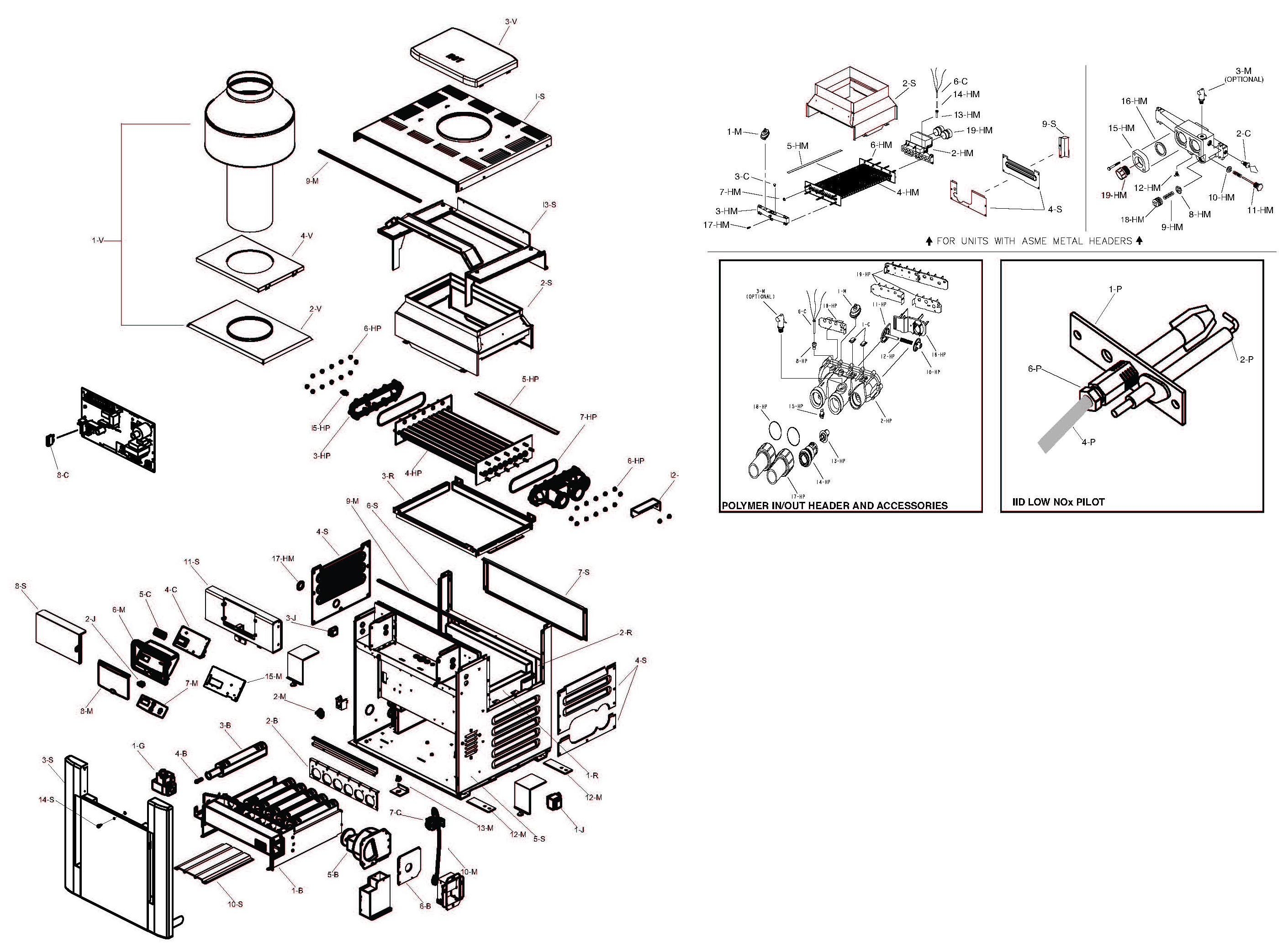

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1-B
1-B
010345F
RAY-151-8783
Product #: RAY-151-8783
Mfg #: 010345F
1-B
1-B
010086F
RAY-151-8785
Product #: RAY-151-8785
Mfg #: 010086F
2-B
2-B
010256F
RAY-151-8036
Product #: RAY-151-8036
Mfg #: 010256F
3-B
3-B
310732
RAY-151-3620
310732 207- 407 BURNER
Product #: RAY-151-3620
Mfg #: 310732
4-B
4-B
351632
Burner Orifice Nat. #26 (0-5000)
Product #:
Mfg #: 351632
5-B
5-B
010042F
RAY-151-1251
Product #: RAY-151-1251
Mfg #: 010042F
7-B
6-B
6-B
010340F
RAY-151-8098
Product #: RAY-151-8098
Mfg #: 010340F
1-C
2-C
2-C
600892B
RAY-151-3609
Product #: RAY-151-3609
Mfg #: 600892B
3-C
3-C
600893B
RAY-151-3610
Product #: RAY-151-3610
Mfg #: 600893B
4-C
4-C
013464F
RAY-151-3724
013464F IID PC BOARD CONTROLLER (AFTER 11/2003)
Product #: RAY-151-3724
Mfg #: 013464F
5-C
5-C
013640F
RAY-151-3850
Product #: RAY-151-3850
Mfg #: 013640F
6-C
6-C
009577F
RAY-151-1208
Product #: RAY-151-1208
Mfg #: 009577F
7-C
7-C
010354F
RAY-151-1396
Product #: RAY-151-1396
Mfg #: 010354F
